Excursion 4WD V8-5.4L SOHC VIN L (2001)
Heater Control Valve: Service and Repair

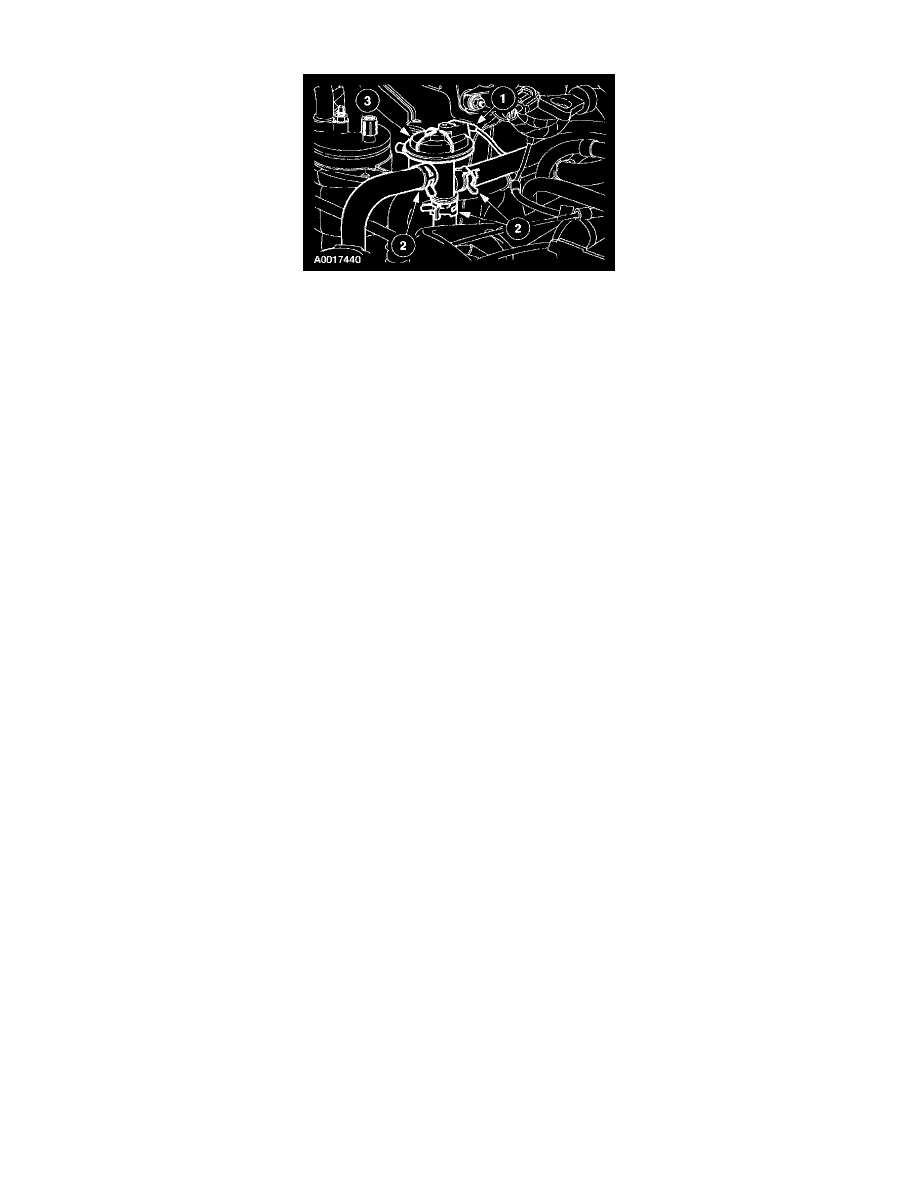

1. Remove the heater control valve.
1
Disconnect the vacuum line.
2
Release the clamp and disconnect the heater hoses.
3
Remove the heater control valve.
NOTE: Auxiliary climate control heater control valve is shown, non-auxiliary heater control valve is similar.
