Explorer 2WD V6-245 4.0L SOHC VIN E EFI (1997)
Control Module HVAC: Description and Operation
A/C Blower Motor Speed Control
CAUTION: The system should not be operated with the blower motor disconnected. Damage may occur to the A/C blower motor speed control if
cooling air is not provided by the blower motor.

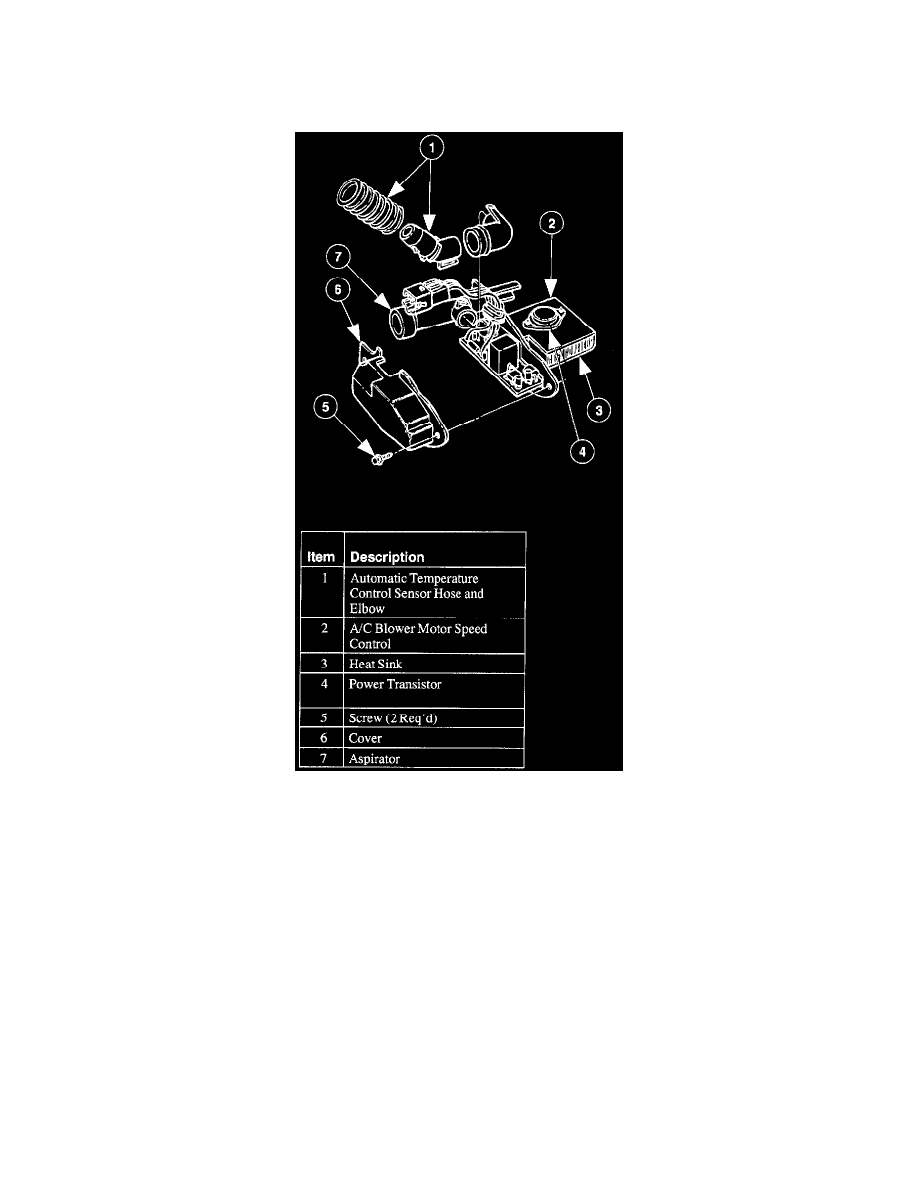

The A/C blower motor speed control, located in the A/C evaporator case, converts low current signals from the electronic control assembly to a high
current, variable ground feed to the blower motor. A delay function provides a gradual increase or decrease in blower motor speeds in all conditions. In
addition, there is a high blower relay integral with the blower speed controller which provides power for maximum airflow in the high blower position.
