Explorer 2WD V6-4.0L (2009)

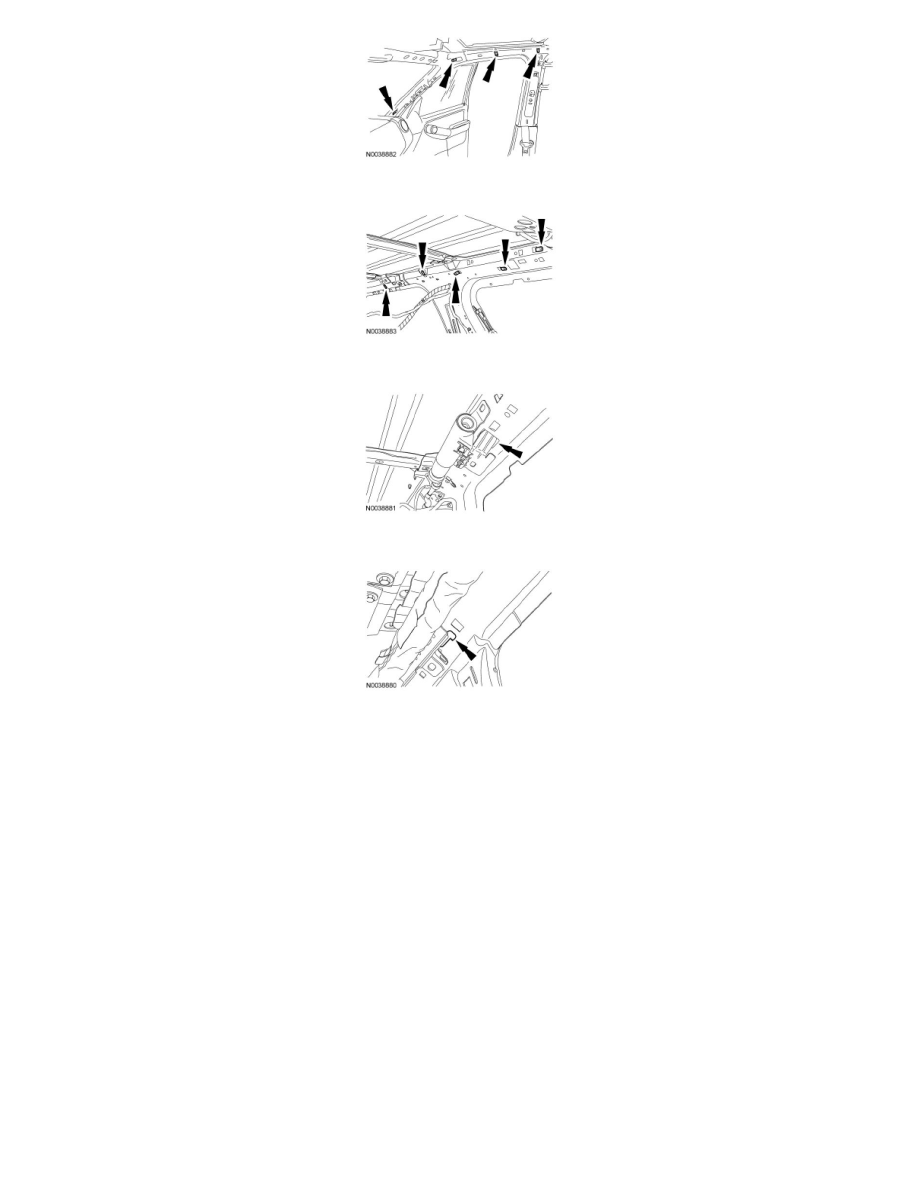

2. Remove the 5 rear J-nuts and install new.
3. Position safety canopy module by moving it rearward installing the rear bracket hook in the sheet metal.
4. Install the safety canopy module B-pillar bracket hook in the sheet metal.
5. NOTE: Make sure all safety canopy module bolt holes line up with all J-clips.
Install the safety canopy module front 2 bolts with the forward most bolt first.
-
Tighten to 8 Nm (71 lb-in).
6. Install the safety canopy module B-pillar bolt.
-
Tighten to 8 Nm (71 lb-in).
7. Install the 3 C-pillar safety canopy module bolts.
-
Tighten to 8 Nm (71 lb-in).
8. Install the 2 safety canopy module rear bracket bolts.
-
Tighten to 8 Nm (71 lb-in).
9. Attach the 3 safety canopy module front tether pin-type retainers to the A-pillar.
10. NOTE: Make sure the safety canopy module front tether bracket locator tab is correctly installed in the A-pillar sheet metal.
Install the safety canopy module front tether bracket and bolt.
-
Tighten to 8 Nm (71 lb-in).
Vehicles with entertainment system
11. NOTE: Make sure to route the entertainment system wiring as noted during removal.
