Explorer 2WD V6-4.0L (2009)

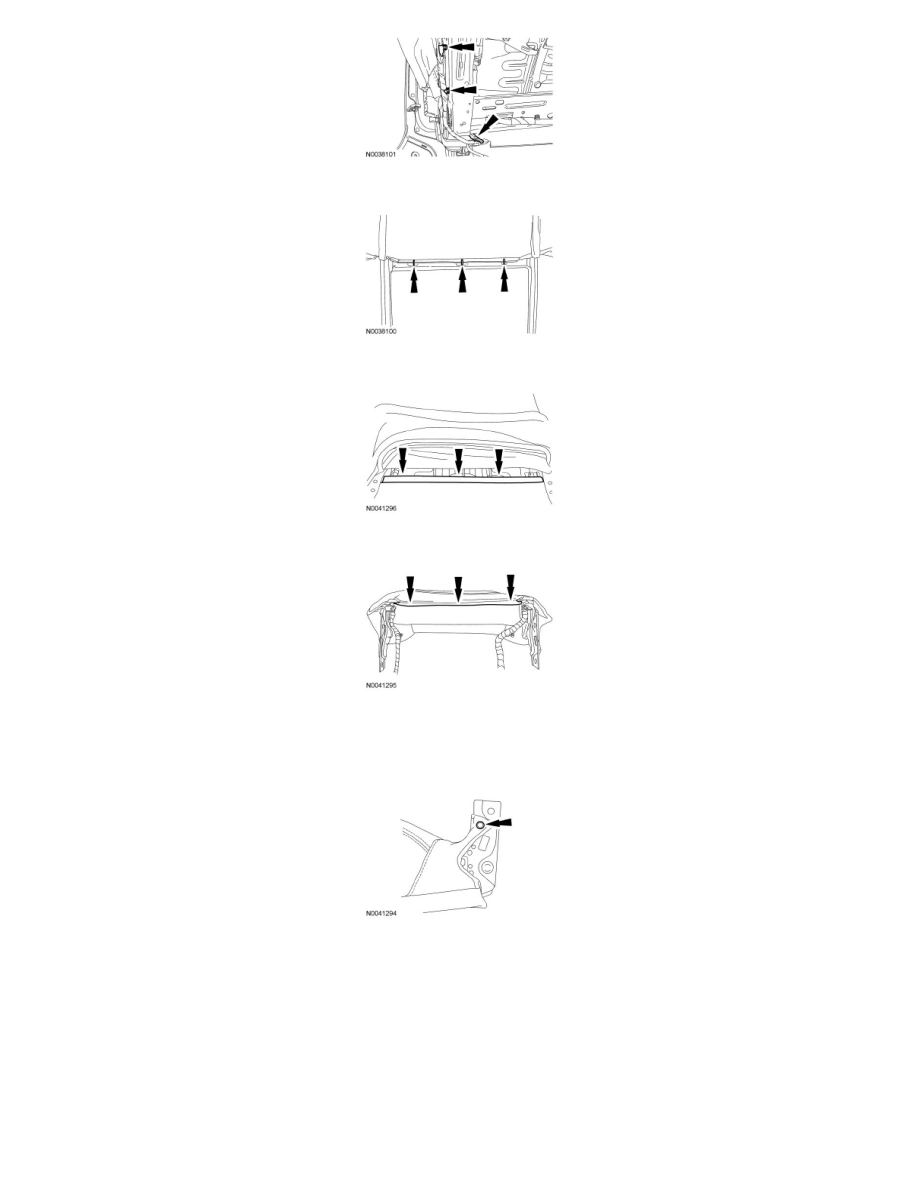

6. Attach the hook-and-loop strips, and roll the seat back trim cover down and install the first row of hog rings.
7. Attach the hook-and-loop strips, and roll the seat back trim cover down and attach the seat back lower inner trim cover J-clip.
8. Attach the seat back lower outer trim cover J-clip.
9. NOTE: RH shown, LH similar.
Fold the backrest trim cover over on each side of the inboard and outboard recliner. Install the plastic rivets attaching the backrest trim cover to the
inboard and outboard recliners on the seat backrest frame.
10. Install the seat backrest.
Driver Seat
11. Install the driver seat and repower the SRS.
Passenger seat
12. Install the passenger seat and repower the SRS. Do not prove out the SRS at this time.
13. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS. For additional information, refer to
Occupant Classification Sensor (OCS) System Zero Seat Weight Test See: Testing and Inspection/Component Tests and General Diagnostics.
