Shift Interlock Solenoid: Service and Repair

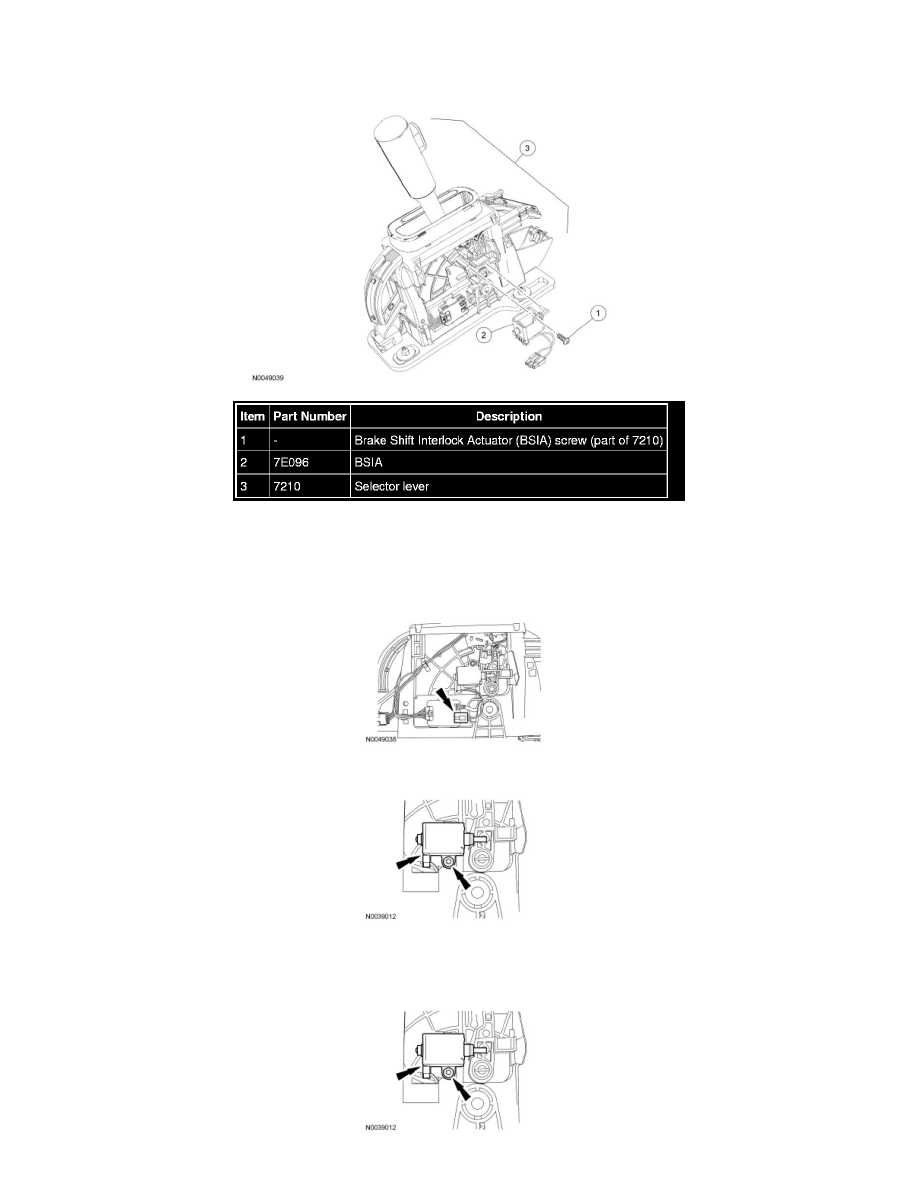

Brake Shift Interlock Actuator

Removal

1. Remove the front floor console.

2. Disconnect the Brake Shift Interlock Actuator (BSIA) electrical connector.

3. Remove the screw and the BSIA.

Installation

1. Install the BSIA and the screw.
