Explorer 2WD V8-4.6L VIN 8 (2006)
Transmission Position Switch/Sensor: Adjustments
Transmission Range (TR) Sensor Adjustment

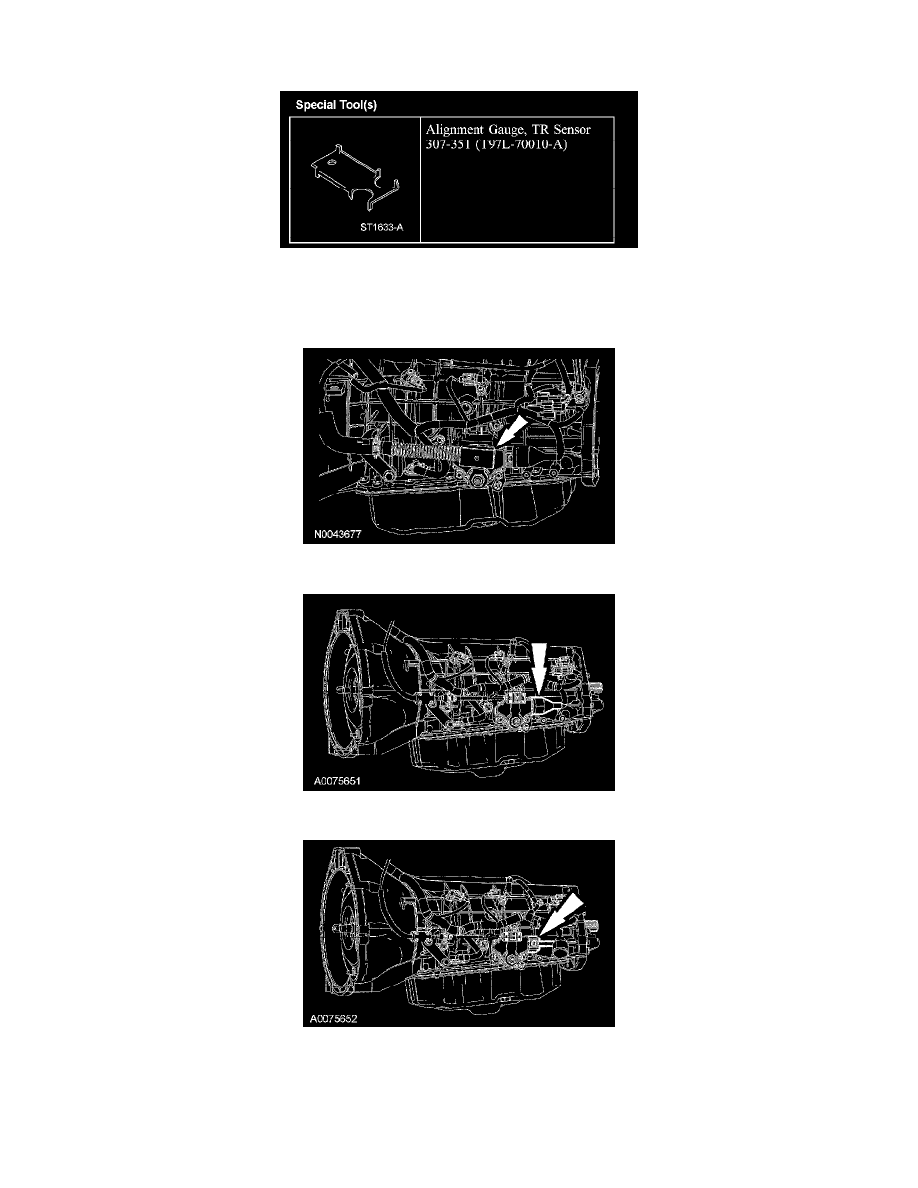

Special Tools
Adjust
1. With the vehicle in the NEUTRAL, position it on a hoist.
2. Remove the cable shield by prying on the side of the shield closest to the boot, then sliding the shield away from the boot.
3. Move the rubber boot back to gain access to the connector.
4. Disconnect the digital transmission range (TR) sensor electrical connector.
