Explorer 2WD V8-4.6L VIN 8 (2006)
Wheel Fastener: Service and Repair
Front
Wheel Studs

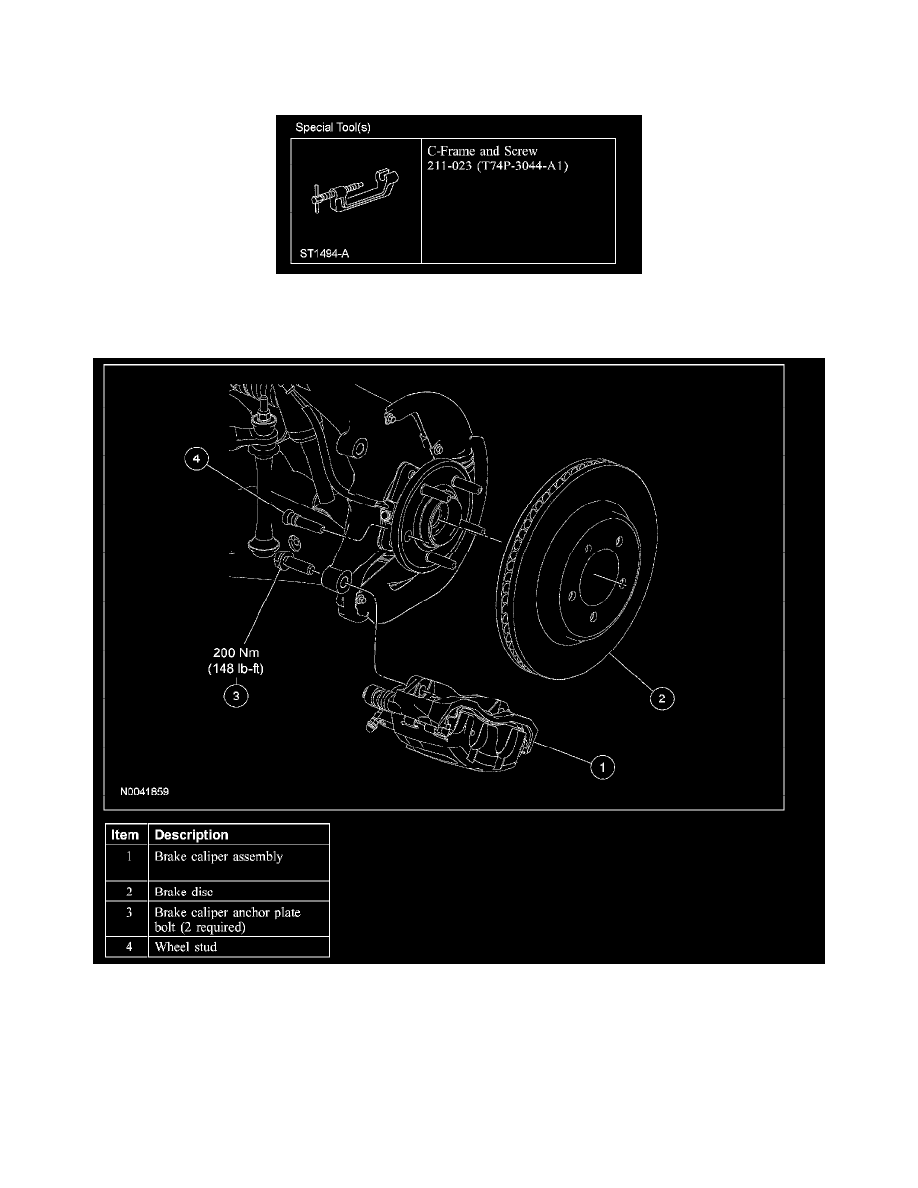

Special Tool
Special Tool(s)
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. CAUTION: Do not allow the caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
Remove the bolts and position the caliper, pads and anchor plate assembly aside.
^
Support the caliper and anchor plate assembly using mechanic's wire.
^
To install, tighten to 200 Nm (148 ft. lbs.).
3. Remove the brake disc.
