Explorer 4WD V6-4.0L (2009)
Lower cable (vehicles with navigation)
NOTE: The lower satellite antenna cable is only serviceable by cutting the ends off the existing antenna cable and taping them to prevent NVH
concerns. The new cable should be overlaid on the electrical harness and secured, as necessary.
1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) See: Cellular
Phone/Communications Control Module/Service and Repair/Removal and Replacement/Audio Control Module (ACM).

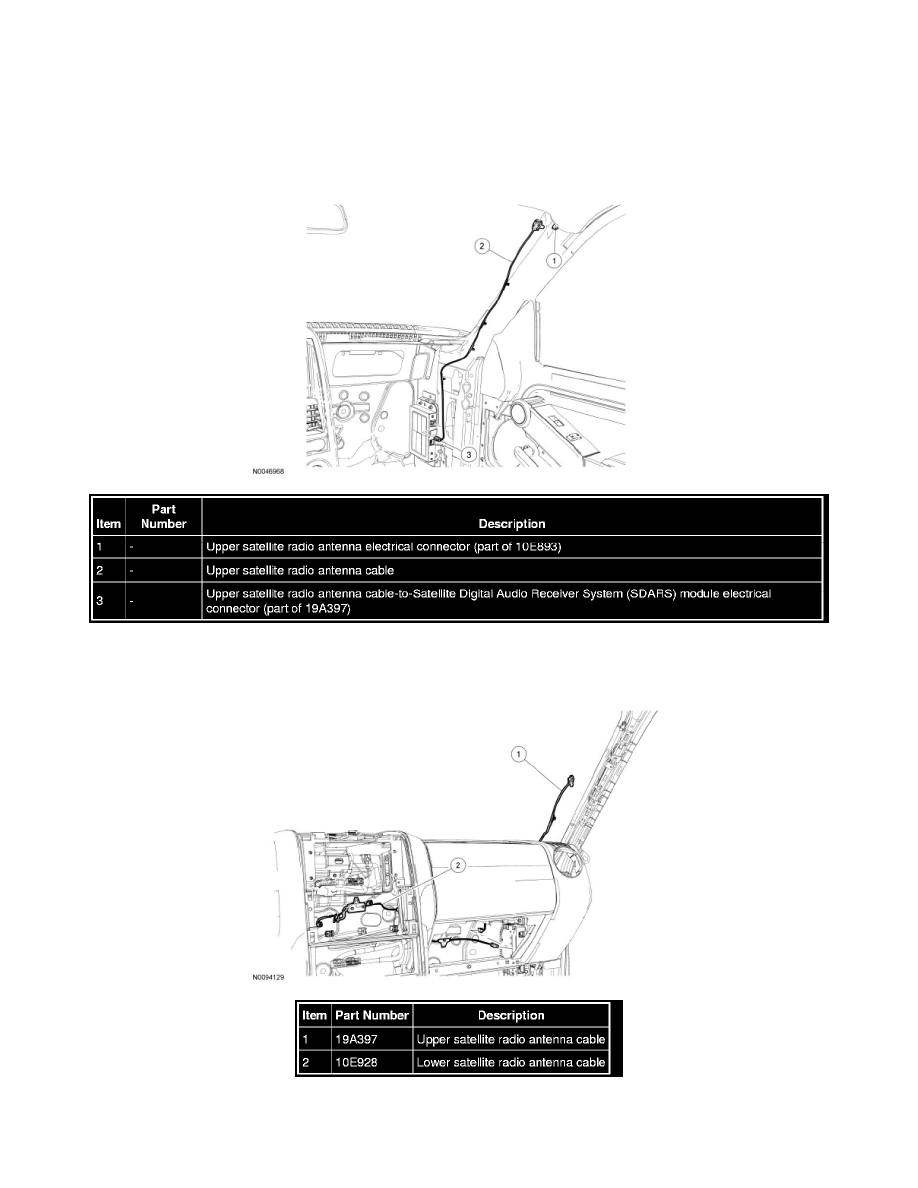

Upper cable (all vehicles)
2. Remove the RH A-pillar trim panel.
3. Disconnect the satellite antenna electrical connector.
Both cables
4. NOTE: Lower the glove compartment completely to access the connection.
Disconnect the upper satellite radio antenna cable from the Satellite Digital Audio Receiver System (SDARS) module (vehicles without
navigation) or the lower satellite radio antenna cable (vehicles with navigation).
5. Remove the satellite radio antenna cable.
6. To install, reverse the removal procedure.
