Explorer 4WD V6-4.0L (2009)
Console: Service and Repair
Console - Overhead
Console - Overhead

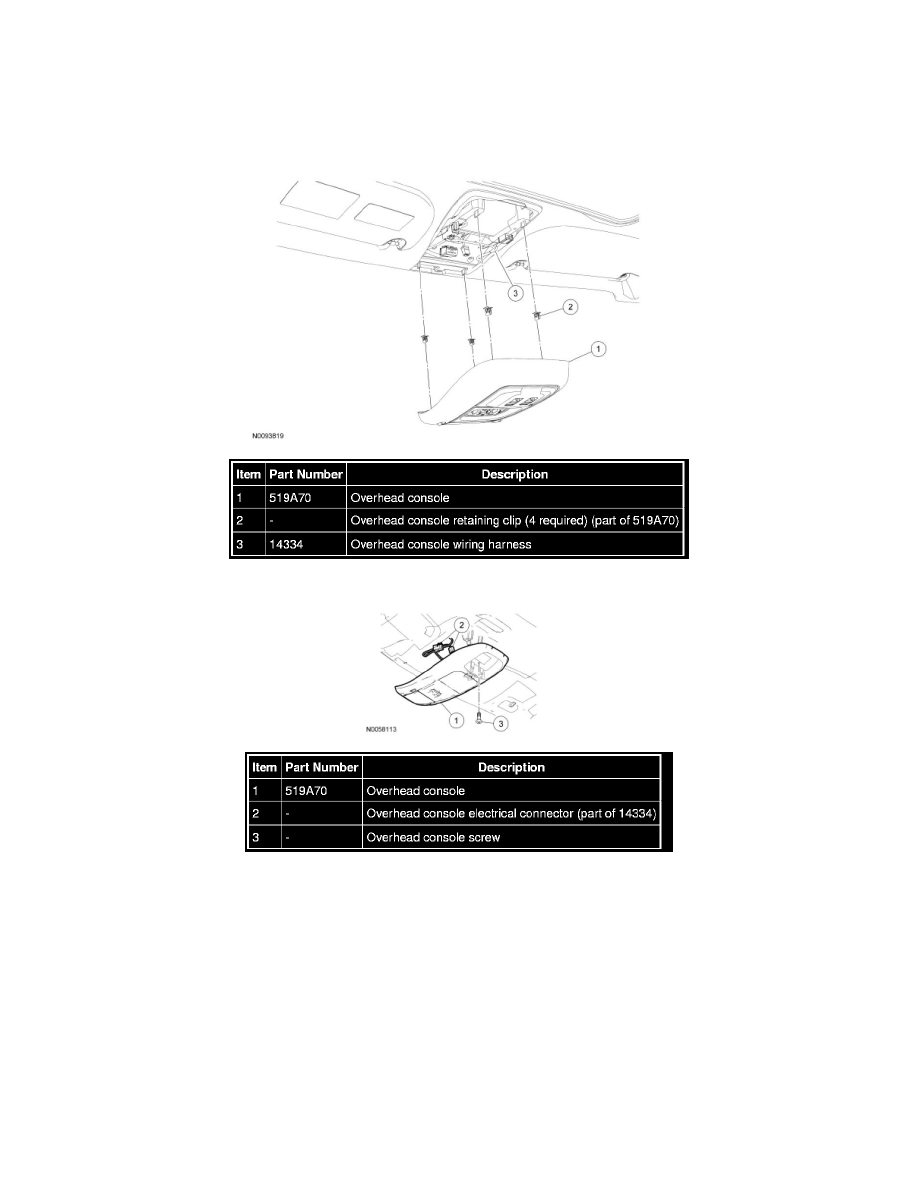

Overhead Console With Roof Opening Panel
Overhead Console Without Roof Opening Panel
Removal and Installation
Vehicles with roof opening panel
1. Pull the overhead console downward to release the retaining clips.
Vehicles without roof opening panel
2. Open the overhead console garage door opener storage compartment.
3. Remove the overhead console screw.
All vehicles
4. Remove the overhead console.
