Explorer 4WD V6-4.0L VIN E (1999)
Fuel Supply Line: Service and Repair
REMOVAL
WARNING
^
DO NOT SMOKE OR CARRY LIGHTED TOBACCO OR OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY
FUEL RELATED COMPONENTS. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
^
FUEL IN THE FUEL SYSTEM REMAINS UNDER HIGH PRESSURE EVEN WHEN THE ENGINE IS NOT RUNNING. BEFORE
WORKING ON OR DISCONNECTING ANY OF THE FUEL LINES OR FUEL SYSTEM COMPONENTS, THE FUEL SYSTEM
PRESSURE MUST BE RELIEVED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
1. Relieve fuel pressure.
2. Remove the upper intake manifold.
3. Disconnect fuel supply line.

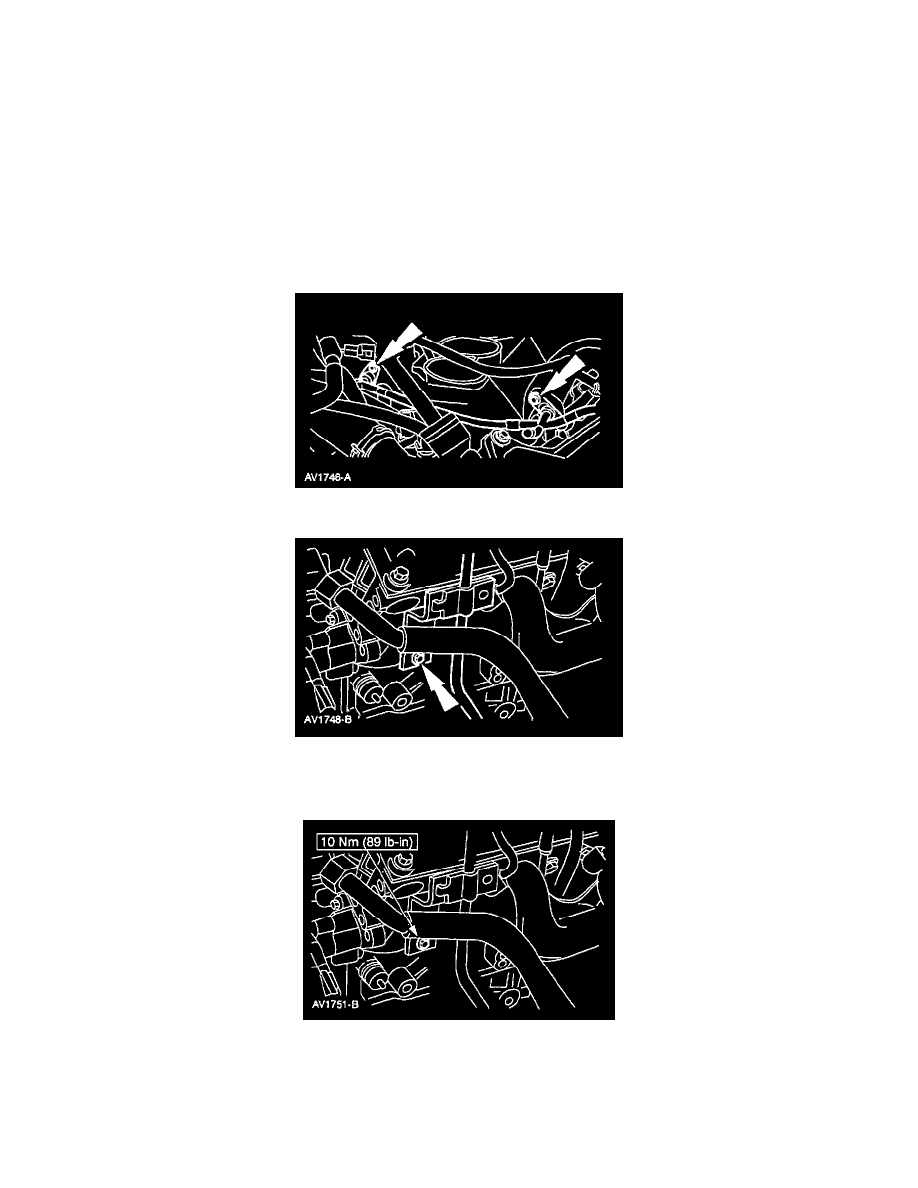

4. Remove the four bolts and the fuel supply line at the fuel injection supply manifold.
5. Remove the fuel supply line bracket bolt and the fuel supply line.
INSTALLATION
