Explorer 4WD V8-4.6L VIN W (2002)
Grille: Service and Repair
RADIATOR GRILLE
Removal and Installation
1. Remove the front bumper cover.

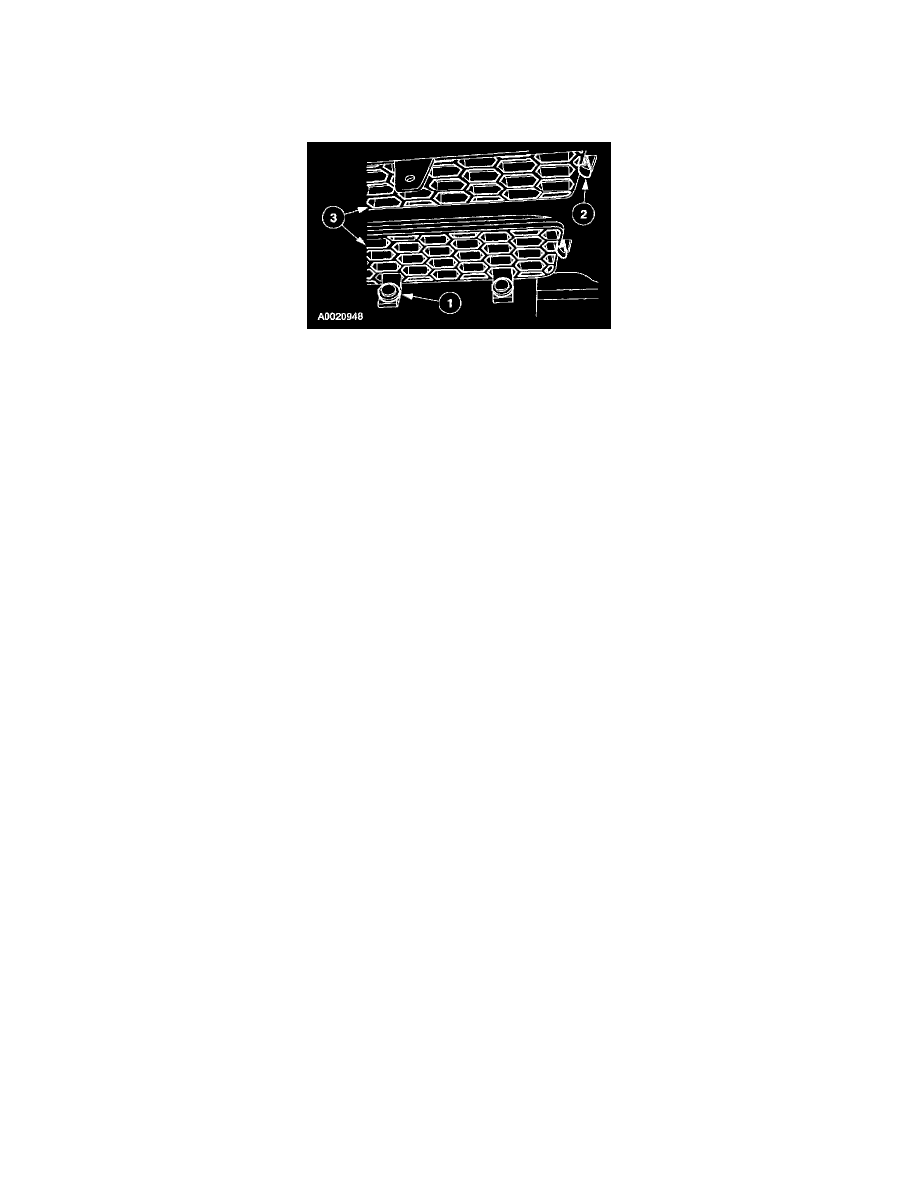

2. Remove the radiator grilles.
1. Remove the four pin-type retainers.
2. Release the six clips.
3. Remove the radiator grilles.
3. To install, reverse the removal procedure.
