Explorer AWD V8-4.6L (2010)
Brake Bleeding: Service and Repair
Component Bleeding
Component Bleeding

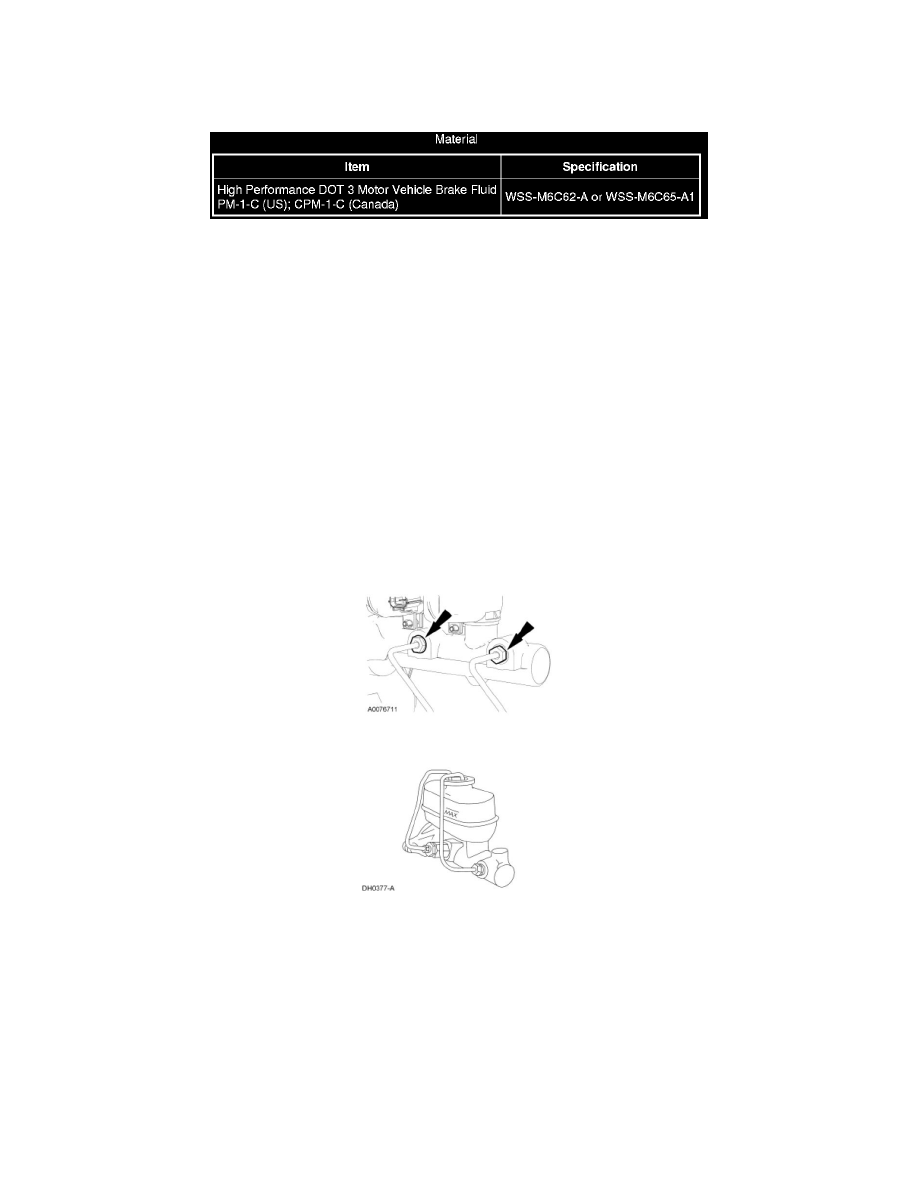

Master Cylinder
WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that
has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of
serious personal injury.
WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In
the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data
Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not allow the brake master cylinder to run dry during the bleeding operation. Master cylinder may be damaged if operated
without fluid, resulting in degraded braking performance. Failure to follow this instruction may result in serious personal injury.
NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or
plastic surface, immediately wash the surface with water.
NOTE: When a new brake master cylinder has been installed, or the system is emptied or partially emptied, it should be primed to prevent air from
entering the system.
1. Disconnect the brake tubes from the master cylinder.
2. Install short brake tubes with the ends submerged in the brake master cylinder reservoir.
3. Fill the brake master cylinder reservoir with clean, specified brake fluid.
4. Have an assistant pump the brake pedal until clear fluid flows from both brake tubes, without air bubbles.
5. Remove the short brake tubes and install the brake outlet tubes.
6. Bleed the brake system. For additional information, refer to Brake System Bleeding See: Brake System Bleeding.
Brake Caliper
WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that
has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of
serious personal injury.
