Explorer Sport Trac 2WD V6-4.0L VIN E (2002)
Sunroof / Moonroof Motor: Service and Repair

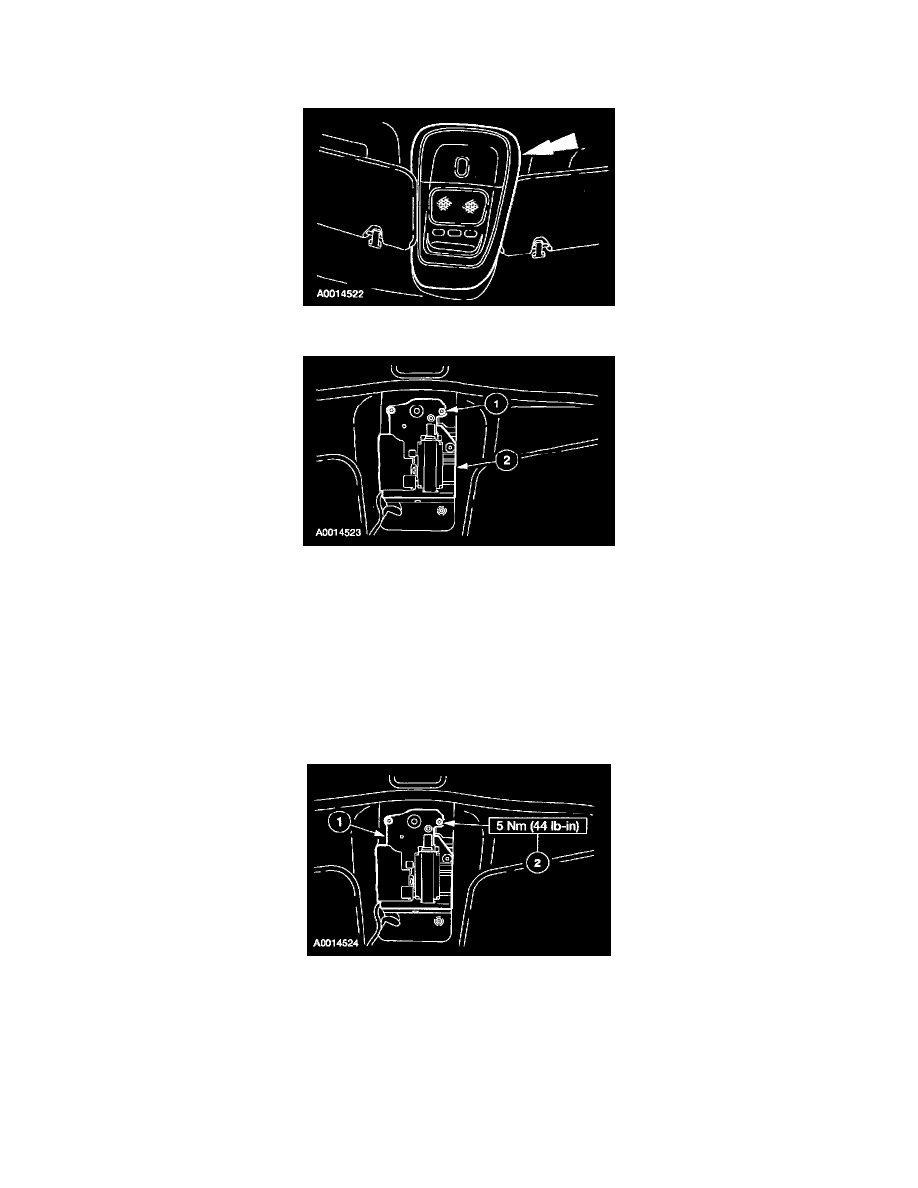

REMOVAL
1. Close the roof opening panel. If necessary, refer to Manual Operation.
2. Position the overhead console aside.
3. Remove the roof opening panel motor.
1
Remove the bolts.
2
Remove the roof opening panel motor.
-
Disconnect the electrical connector.
NOTE: Make sure that the roof opening panel motor is in the closed position.
INSTALLATION
1. Connect the roof opening panel motor electrical connector.
2. With the ignition switch on and the roof opening panel motor still removed, bump the roof opening panel switch one time only towards the close
or vent position.
3. Install the roof opening panel motor.
1
Position the roof opening panel motor.
2
Install the roof opening panel bolts.
