Front Fender Liner: Service and Repair

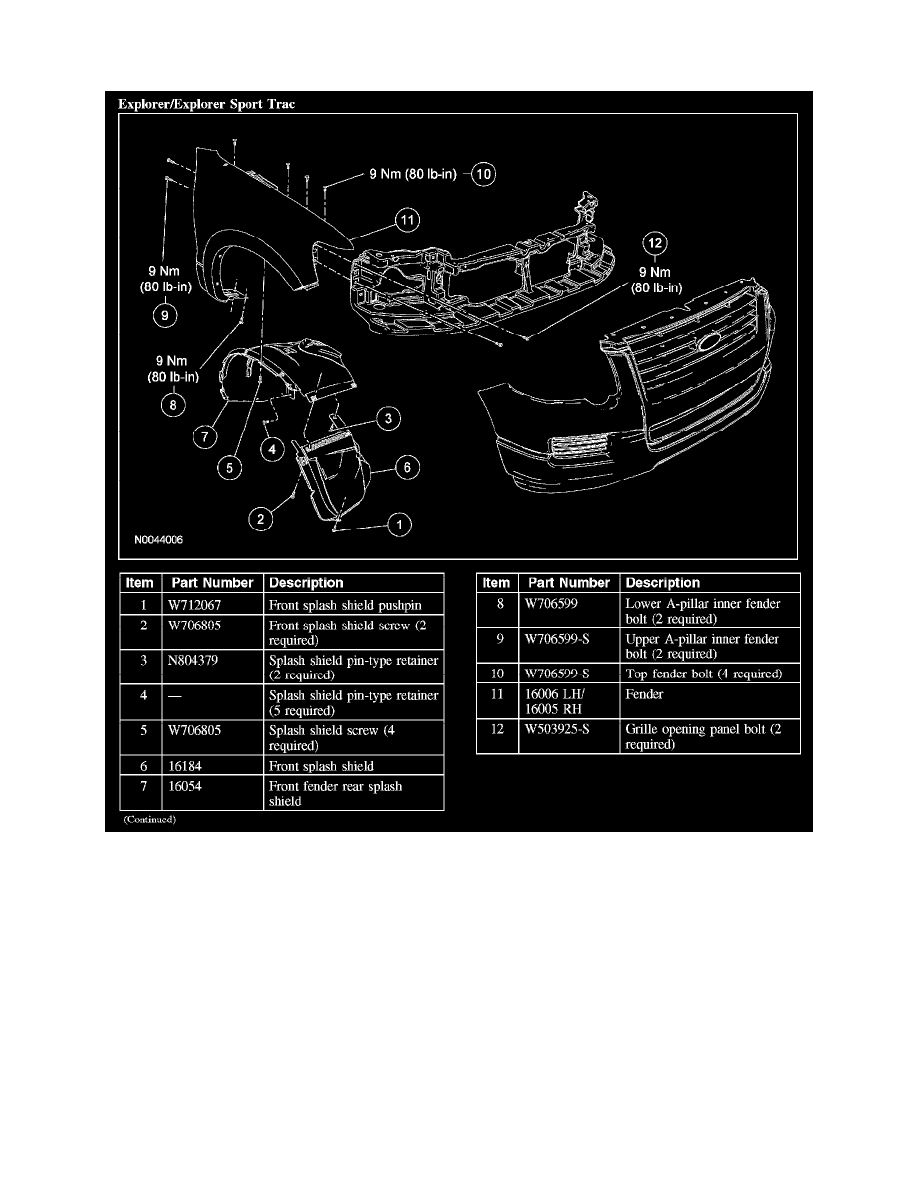

FENDER SPLASH SHIELD

Explorer/Explorer Sport Trac

Body and Frame
Fender
Front Fender
Front Fender Liner
System Information
Service and Repair
