Explorer Sport Trac 4WD V8-4.6L VIN 8 (2007)
Parking Brake Cable: Service and Repair
Parking Brake Cable Tension Release
Parking Brake Cable Tension Release
1. Remove the LH cowl side trim panel.

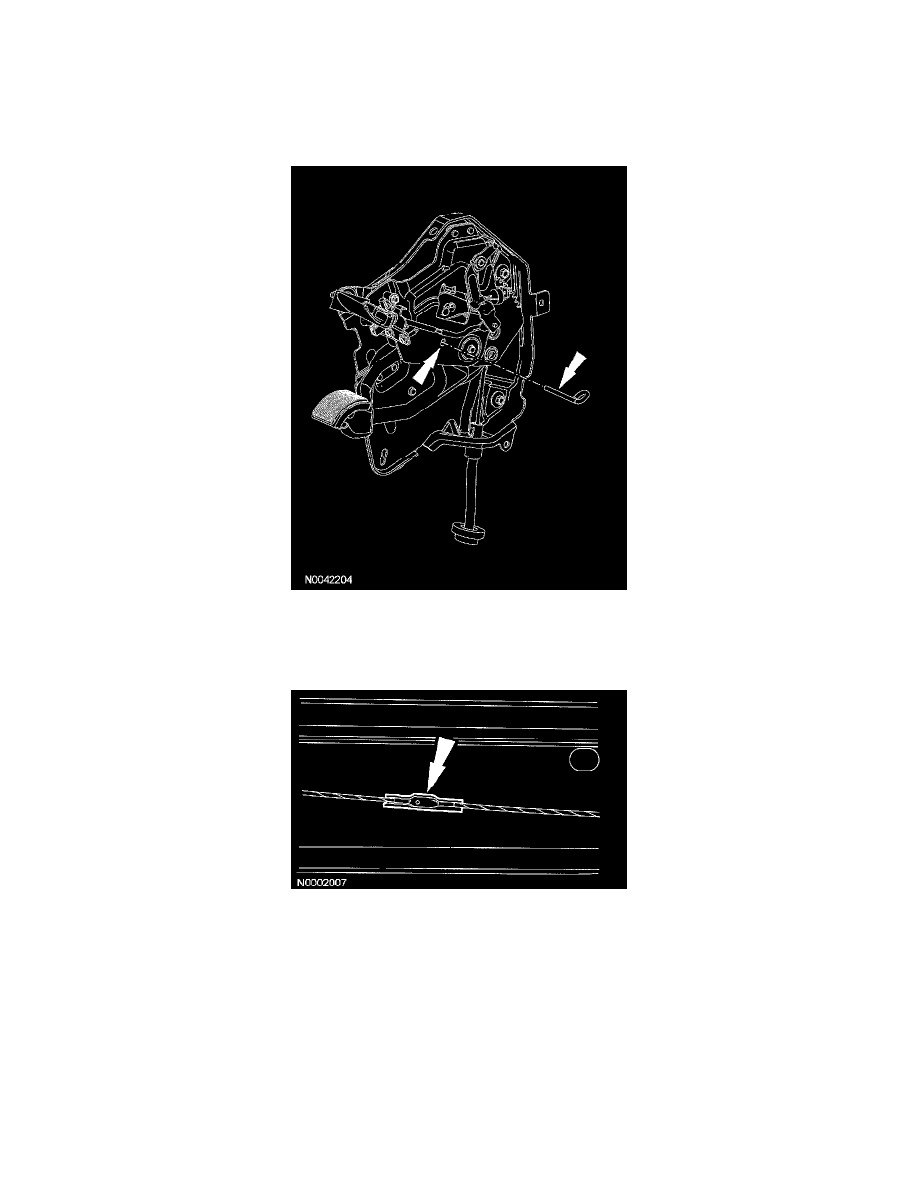

2. With the help of an assistant, release the parking brake cable tension by pulling down on the intermediate cable at the cable-to-cable connector clip
until the parking brake control sector rotates to its stop and a 4 mm (0.15 inch) x 150 mm (5.9 inch) retainer pin can be inserted.
3. NOTE: Make sure the cable-to-cable connector clip is connected to the front and rear cable before removing the brake control retaining pin, and
the cable tension is reloaded slowly.
Disconnect the cable-to-cable connector clip.
4. To reload the tension on the parking brake cable, follow the release procedure in reverse.
