F 150 4WD Pickup V8-351 5.8L VIN G 2-bbl (1984)
NOTE:
The valve will automatically become operational when the vehicle's suspension is in the "curb position".

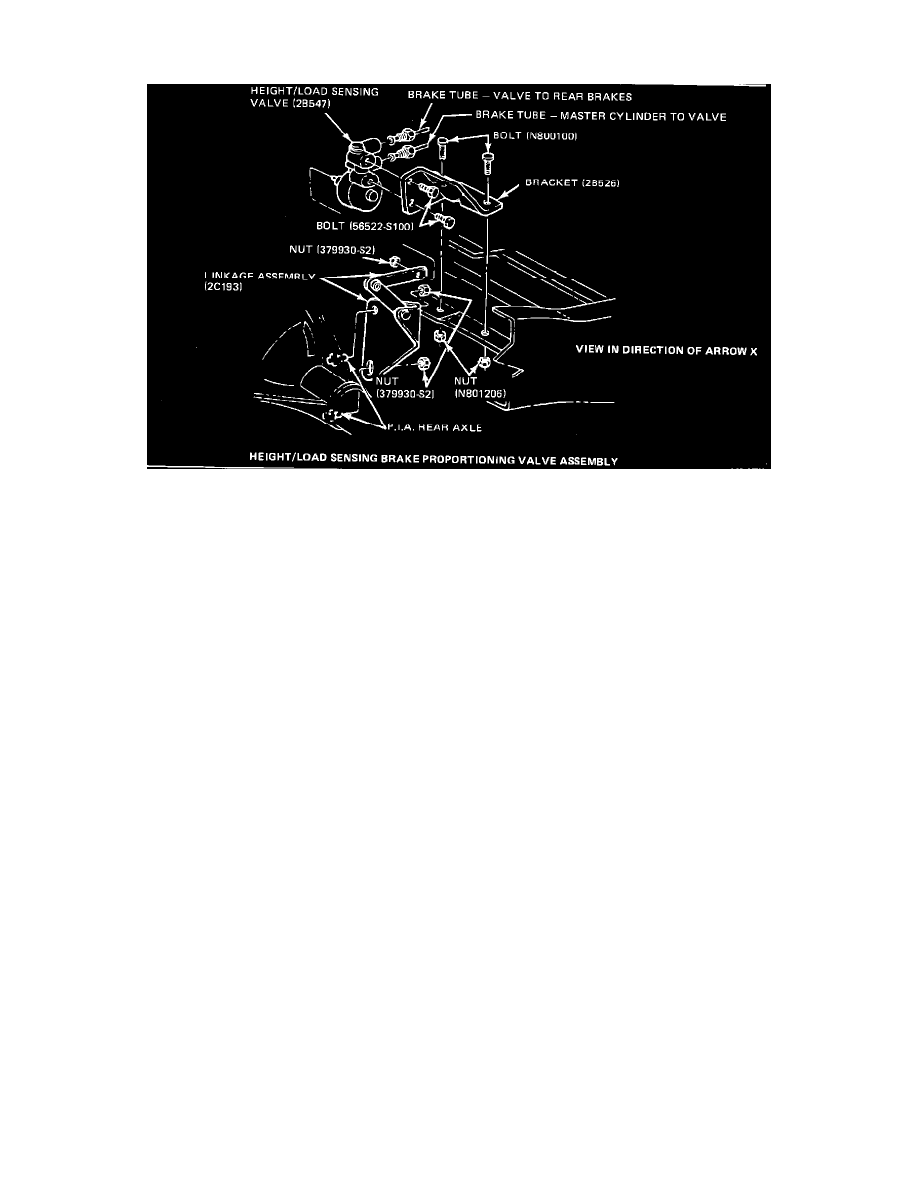

FIGURE 6
When servicing other rear suspension components (axle assembly, rear springs, fuel tank, etc.), remove the two nuts (Figure 6), attaching the sensing
valve linkage (2C193) to the rear axle cover plate. This will eliminate the need to reset the brake valve.
A new sensing valve assembly will have the shaft preset and secured internally. If the valve shaft of any valve turns freely - DO NOT USE. The
height/load sensing brake proportioning valve (2B547) is not to be serviced or disassembled. It must be replaced as a complete assembly. If the linkage
assembly (2C193) has been damaged or broken, a new sensing valve assembly must also be installed.
PART NUMBER
PART NAME
CLASS
E4TZ-2B547-A
Height Sensing
C
Proportioning Valve
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP2B547A84
TIME:
1.0 Hr. DLR. CODING: Basic Part No. 2B547
Code:
Appropriate defect code
