F 150 Heritage 4WD Pickup V8-5.4L SOHC VIN Z Bi-fuel (2004)
Antenna Cable: Service and Repair
CABLE - LEAD-IN
REMOVAL
1. Remove the front wheel and tire.

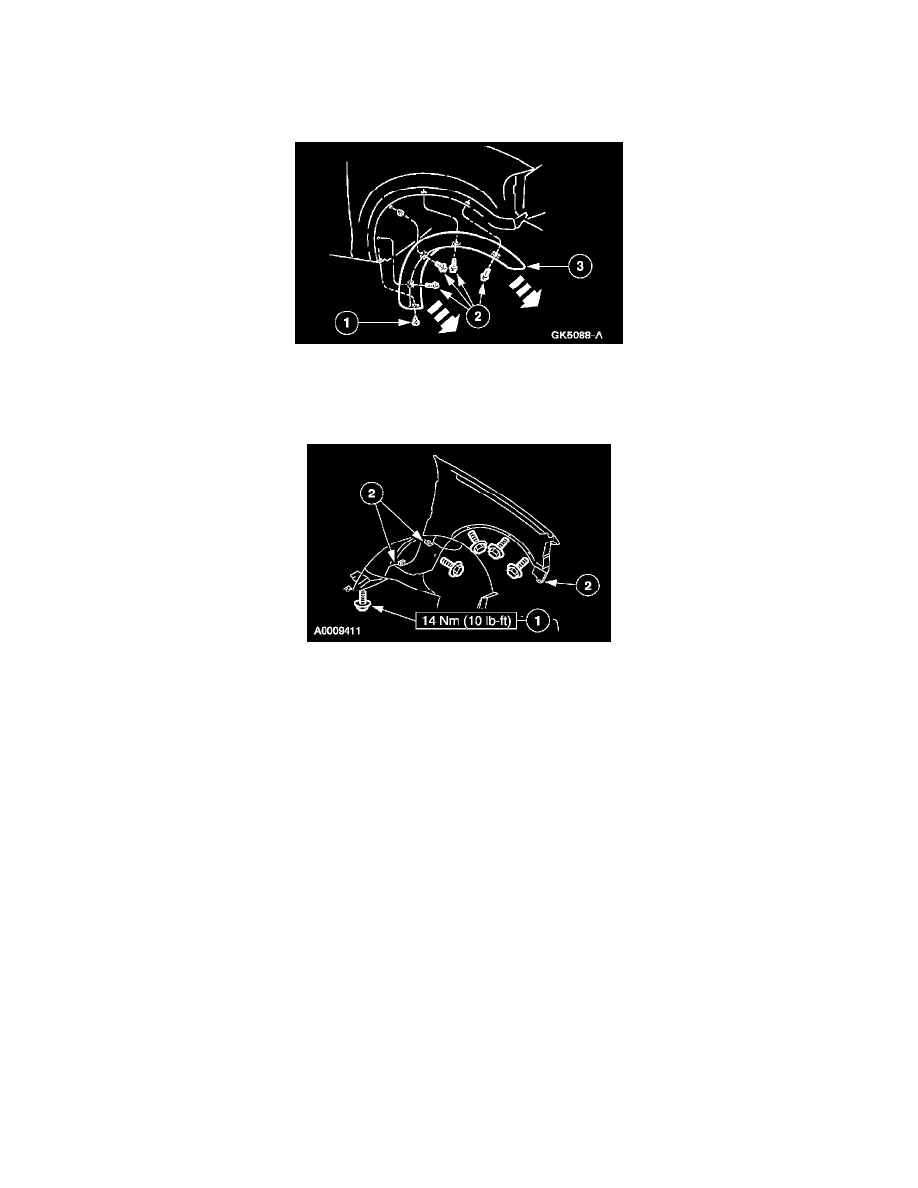

2. On 4x4 vehicles, remove the front wheel opening moulding.
1
Remove the pin-type retainer.
2
Remove the screws.
3
Carefully pull the wheel opening moulding to release the nine clips and remove the front wheel opening moulding.
3. Remove the inner fender splash shield.
1
Remove the screws.
2
Pull the inner fender splash shield to release the clips.
4. Disconnect the radio antenna lead-in cable from the antenna base.
5. Remove the audio unit.
