F 250 4WD Pickup V8-5.4L SOHC VIN L (1999)
1. Follow the removal procedure in reverse order.
Rear
Removal

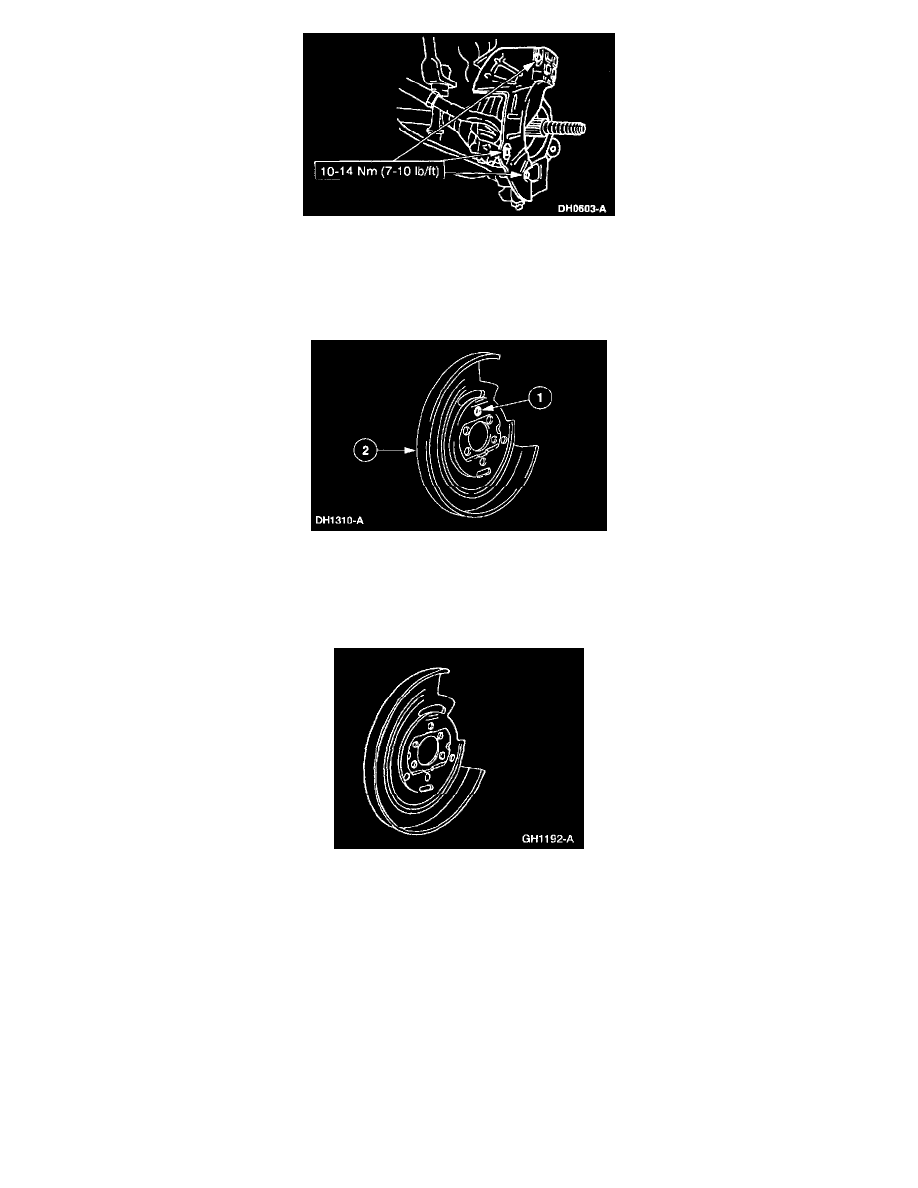

1. Remove the rear wheel disc brake adapter.
2. Remove the rear wheel disc brake shield.
1
Drill out the rivet.
2
Remove the rear wheel disc brake shield.
Installation
1. NOTE: Because the rear wheel disc brake shield is held in position by the four rear wheel disc brake adapter bolts, a new rivet is not required.
Seal the rivet hole with Silicone Rubber D6AZ- 19562-AA or equivalent meeting Ford specification ESB-M4G92-A, and install the rear wheel
disc brake shield.
2. Install the rear wheel disc brake adapter.
