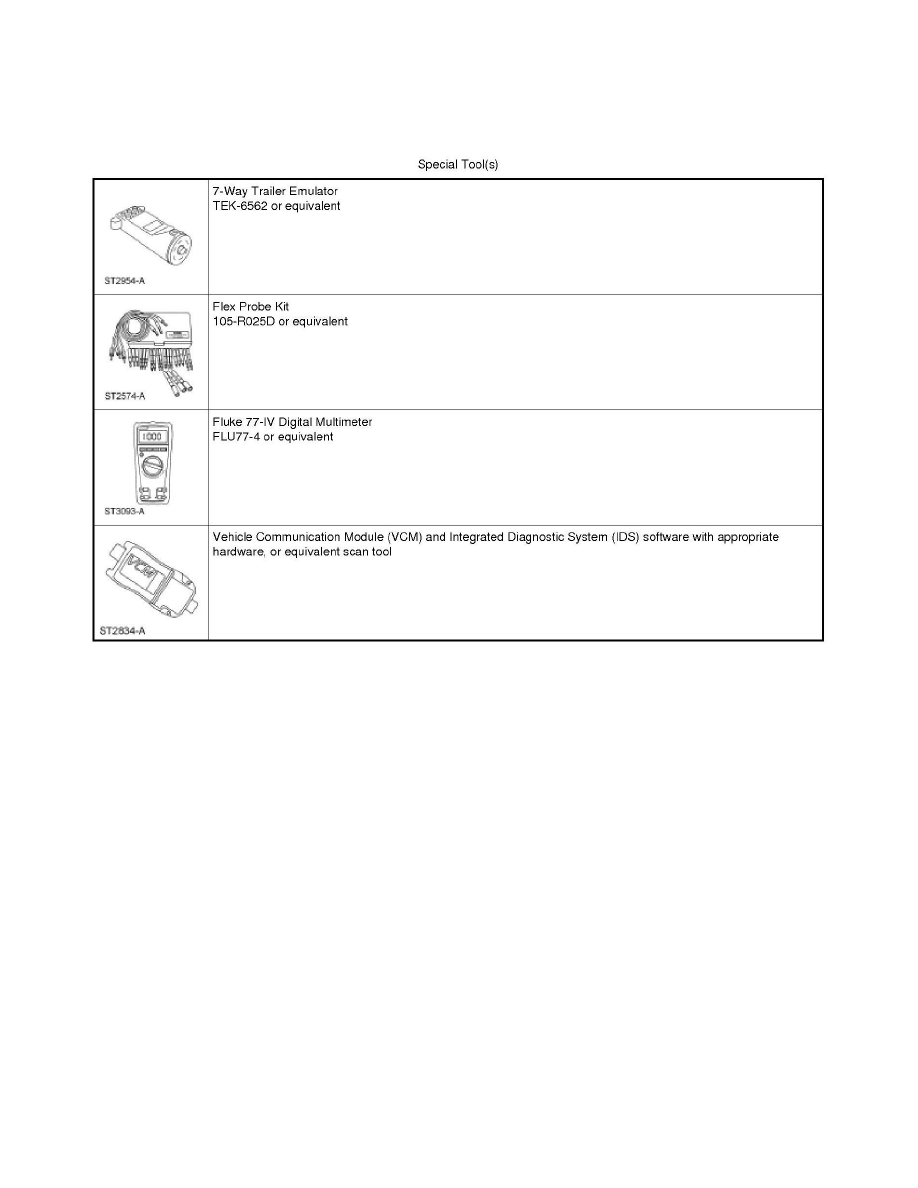

2. NOTE: Make sure to use the latest scan tool software release.

If the cause is not visually evident, connect the scan tool to the Data Link Connector (DLC).

3. NOTE: The Vehicle Communication Module (VCM) LED prove out confirms power and ground from the DLC are provided to the VCM.

If the scan tool does not communicate with the VCM:

-

check the VCM connection to the vehicle.

-

check the scan tool connection to the VCM.

-

refer to Information Bus, No Power To The Scan Tool, to diagnose no power to the scan tool.

4. If the scan tool does not communicate with the vehicle:

-

verify the ignition key is in the ON position.

-

verify the scan tool operation with a known good vehicle.

-

refer to Information Bus to diagnose no response from the PCM.

5. Carry out the network test.

-

If the scan tool responds with no communication for one or more modules, refer to Information Bus.

-

If the network test passes, retrieve and record Continuous Memory Diagnostic Trouble Codes (CMDTCs).

6. Clear the CMDTCs and carry out the self-test diagnostics for the TBC module.

7. If the DTCs retrieved are related to the concern, go to the Trailer Brake Control (TBC) Module DTC Chart. For all other DTCs, refer to Body

Control Systems.  See: Diagnostic Trouble Code Descriptions

8. If no DTCs related to the concern are retrieved, GO to Symptom Chart.  See: Symptom Related Diagnostic Procedures
