F 350 2WD Super Duty V10-6.8L (2009)
bearing cap locations.
Remove the 6 bolts in the sequence shown, the 3 bearing caps and the balance shaft.
6. Remove the 2 bolts and the camshaft roller follower.
All camshaft roller followers
7. NOTICE: If the components are to be reinstalled, they must be installed in their original location or engine damage may occur. Mark the
components for installation into their original locations.
NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder
head must be removed. For additional information, refer to Cylinder Head See: Service and Repair/Removal and Replacement/Cylinder Head -
Removal.
NOTE: It may be necessary to push the valve down while compressing the spring.
Using the Valve Spring Compressor, compress the valve spring and remove the camshaft roller follower.
8. Repeat the previous 2 steps for each camshaft roller follower being serviced.

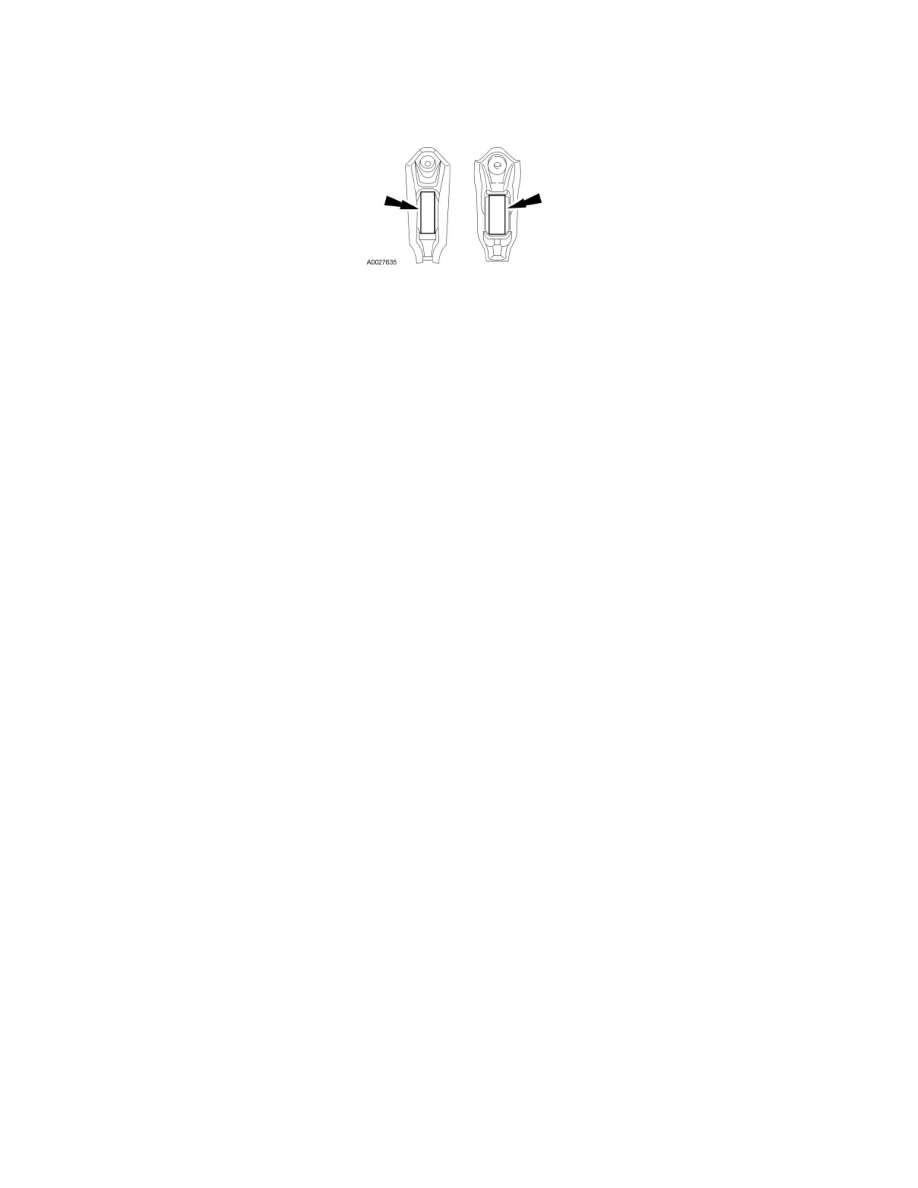

9. Inspect the camshaft roller follower.
Installation
All camshaft roller followers
1. NOTICE: If the components are to be reinstalled, they must be installed in their original location or engine damage may occur. Mark the
components for installation into their original locations.
NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder
head must be removed. For additional information, refer to Cylinder Head See: Service and Repair/Removal and Replacement/Cylinder Head -
Removal.
NOTE: It may be necessary to push the valve down while compressing the spring.
