F 350 2WD Super Duty V10-6.8L (2009)
Sensors and Switches
Sensors and Switches - Body and Frame
Seat Heater Switch / Service and Repair / Seat - Exploded View, Front
Page 601
Page 4

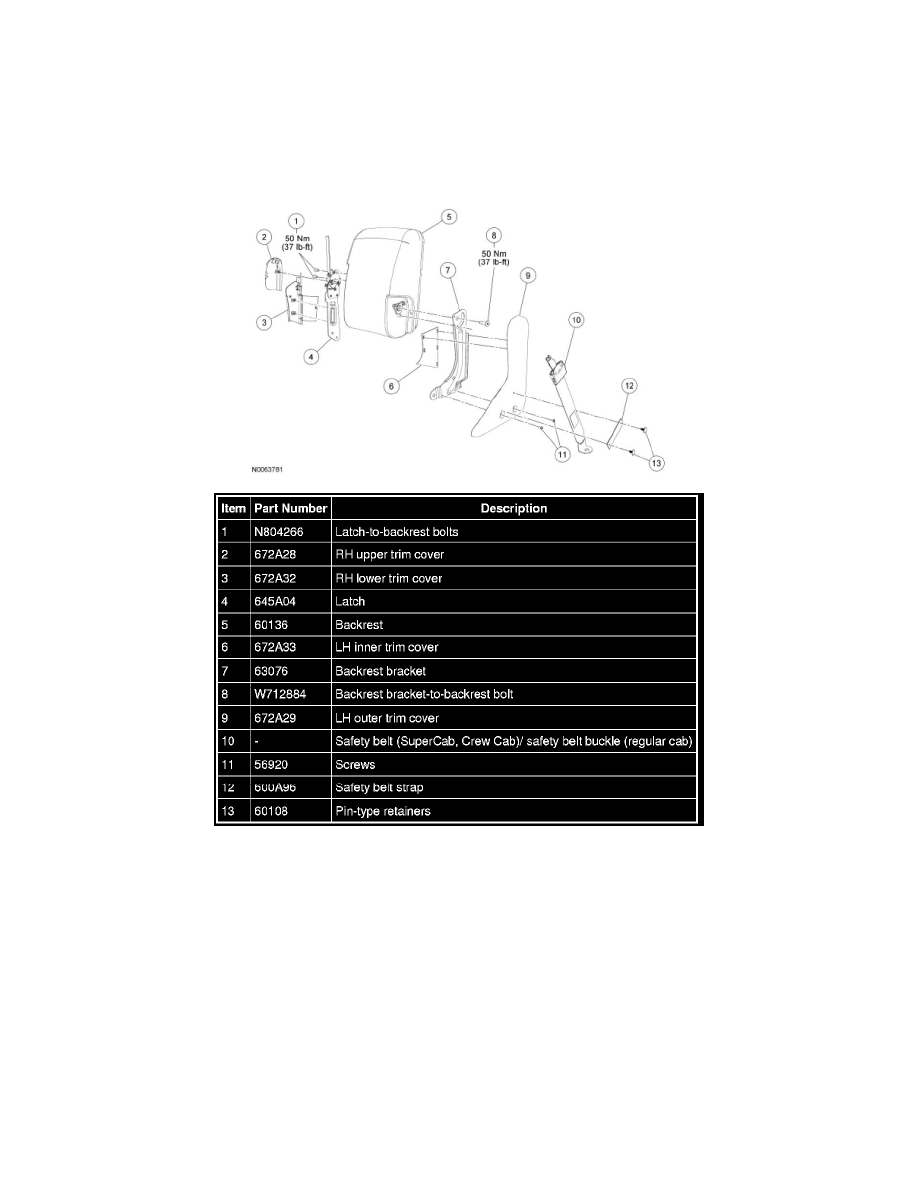

Bucket Seat Backrest
NOTE:
LH shown, RH similar.
Bucket Seat Cushion
NOTE:
LH shown, RH similar.
Sensors and Switches
Sensors and Switches - Body and Frame
Seat Heater Switch / Service and Repair / Seat - Exploded View, Front
Page 601
