F 350 2WD Super Duty V10-6.8L (2009)
6. Move the selector lever into the (D) position.
1. Move the selector lever out of the PARK position.
2. Verify the selector lever is mechanically in the (D) position.

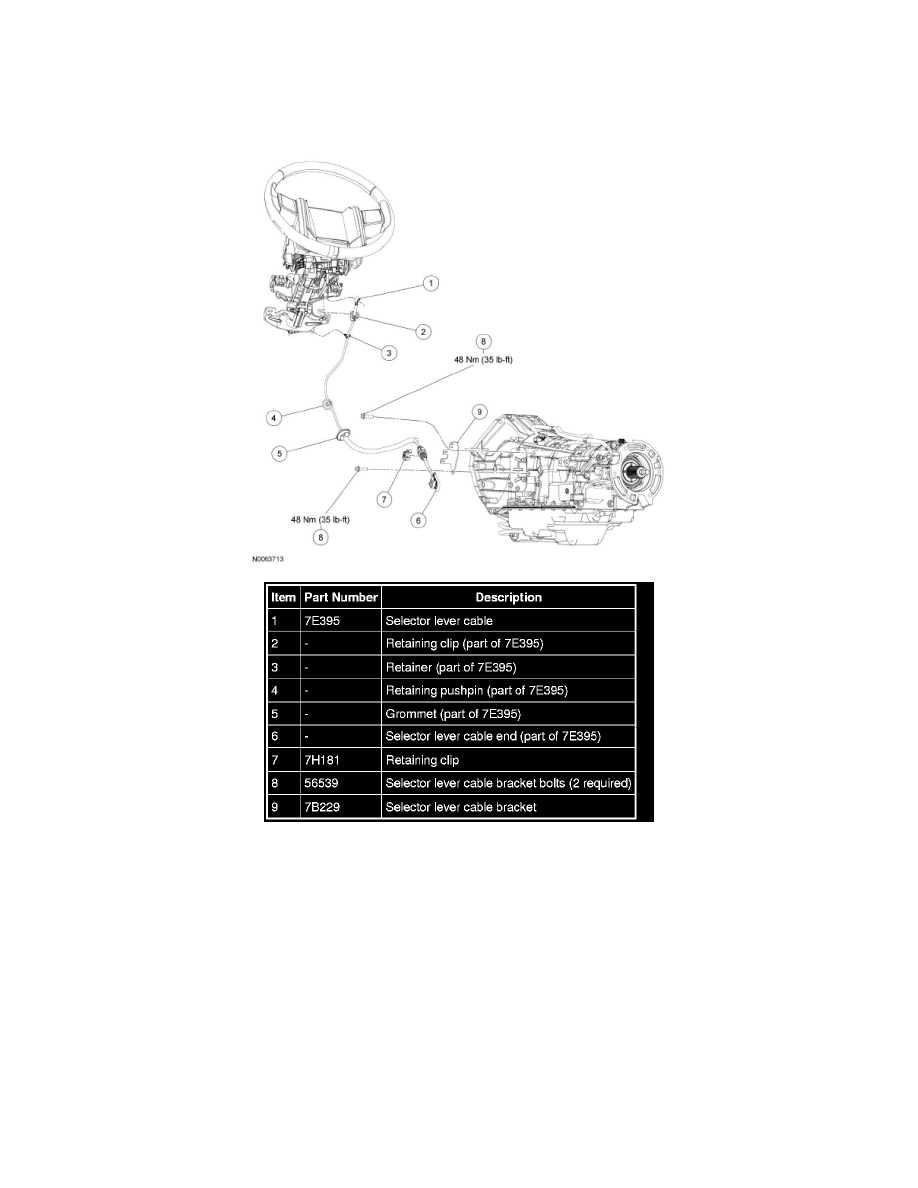

7. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable assembly between the selector lever arm ball stud
and the steering column bracket.
Disconnect the selector lever cable from the steering column.
1. Disconnect the selector lever cable from the selector lever arm ball stud.
2. Carefully lift the locking tab and disconnect the selector lever cable from the steering column bracket.
3. Disconnect the selector lever cable retainer.
8. Disconnect the cable pushpin from the stud in the dash panel.
9. Push the rubber grommet and selector lever cable through the floor pan.
10. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable assembly between the manual control lever and the
selector lever cable bracket.
Disconnect the selector lever cable from the manual control lever.
