F 350 2WD Super Duty V8-5.4L SOHC VIN L (2002)
Trunk / Liftgate Lock Cylinder: Service and Repair

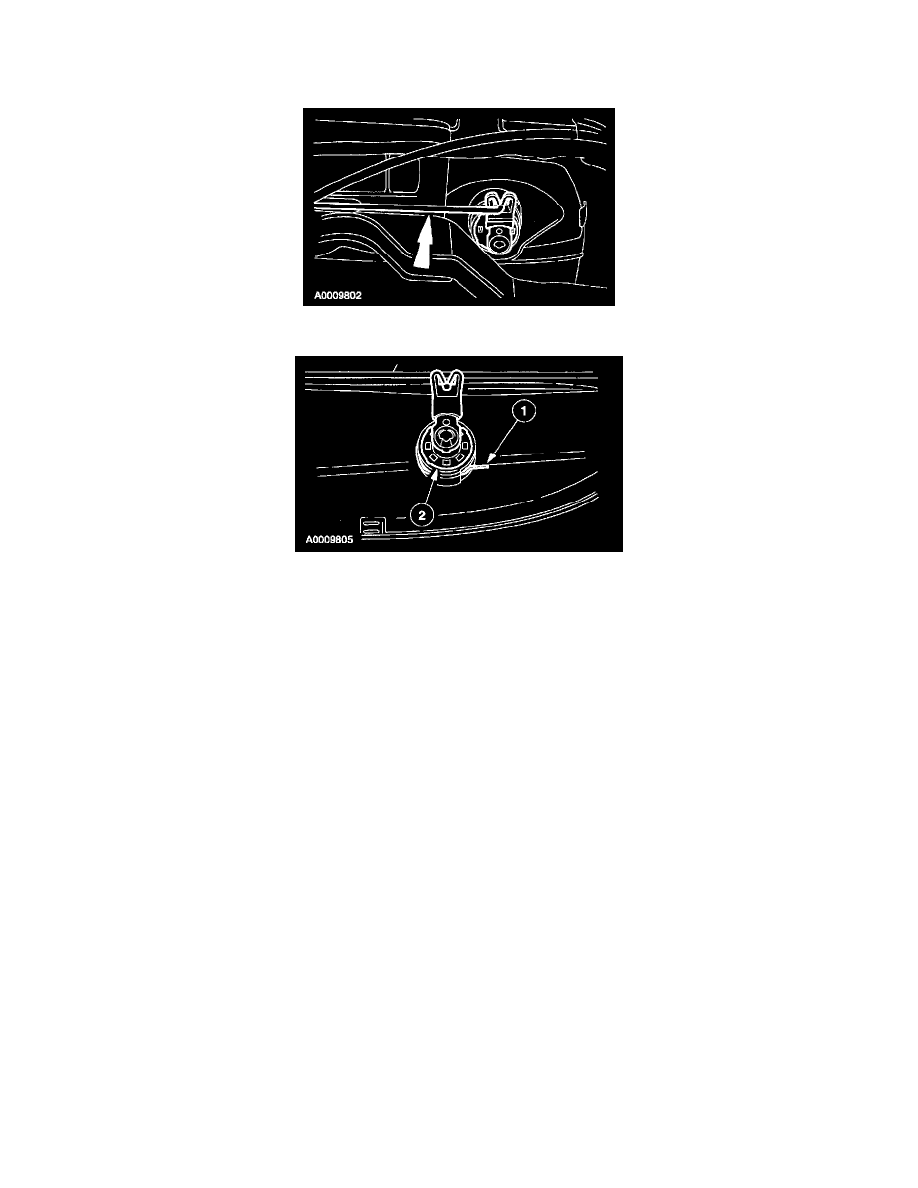

REMOVAL
1. Remove the liftgate trim panel.
2. Release the lock cylinder rod.
3. Remove the lock cylinder.
1
Remove the clip.
2
Remove the lock cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
