Focus L4-2.0L DOHC VIN 5 (2003)
High Pressure Sensor / Switch: Service and Repair

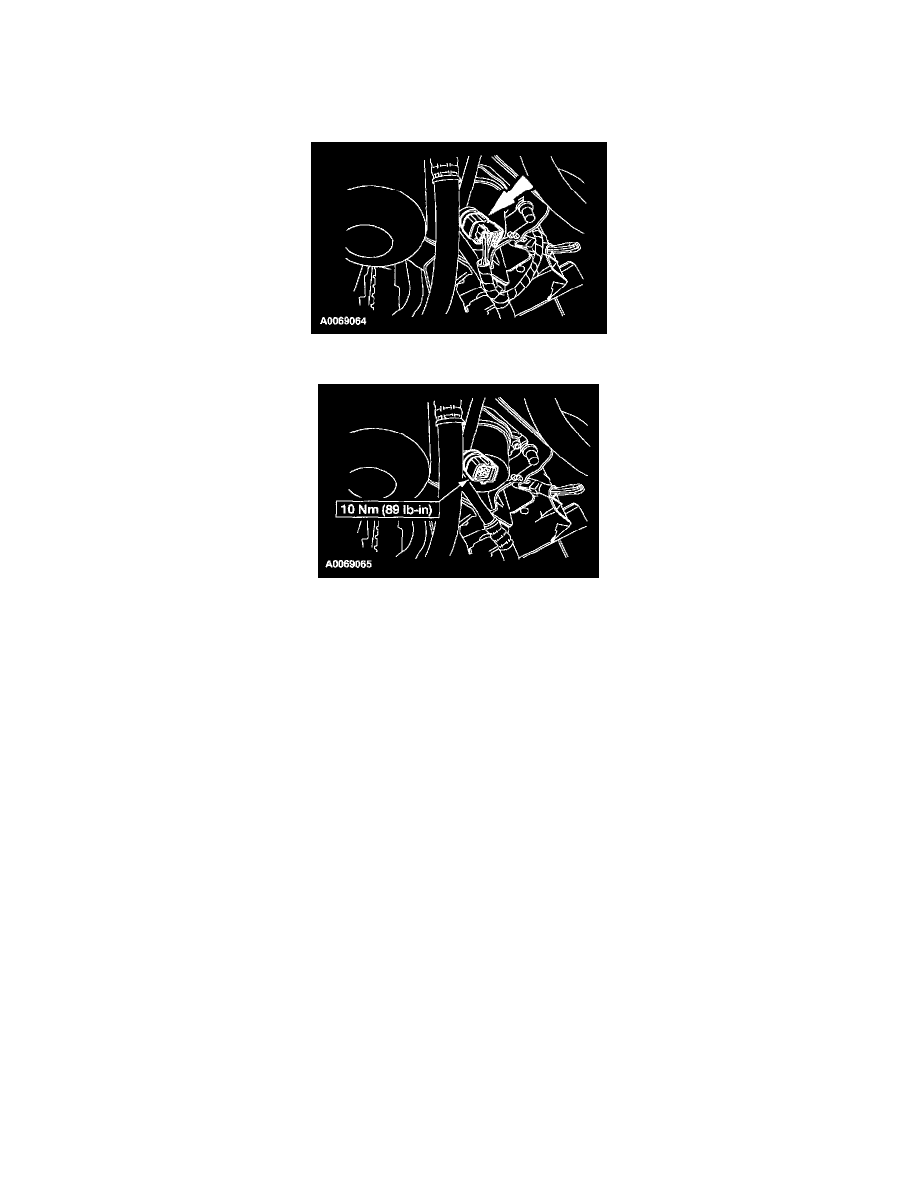

HIGH-PRESSURE CUTOFF SWITCH
REMOVAL
1. Position the vehicle on a hoist with the gear selector in NEUTRAL.
2. Disconnect the high-pressure cutoff switch electrical connector.
3. Remove the high-pressure cutoff switch.
-
Discard the O-ring seal.
INSTALLATION
1. To install, reverse the removal procedure.
-
Install a new O-ring seal lubricated in clean PAG oil.
