Focus L4-2.0L VIN N (2006)

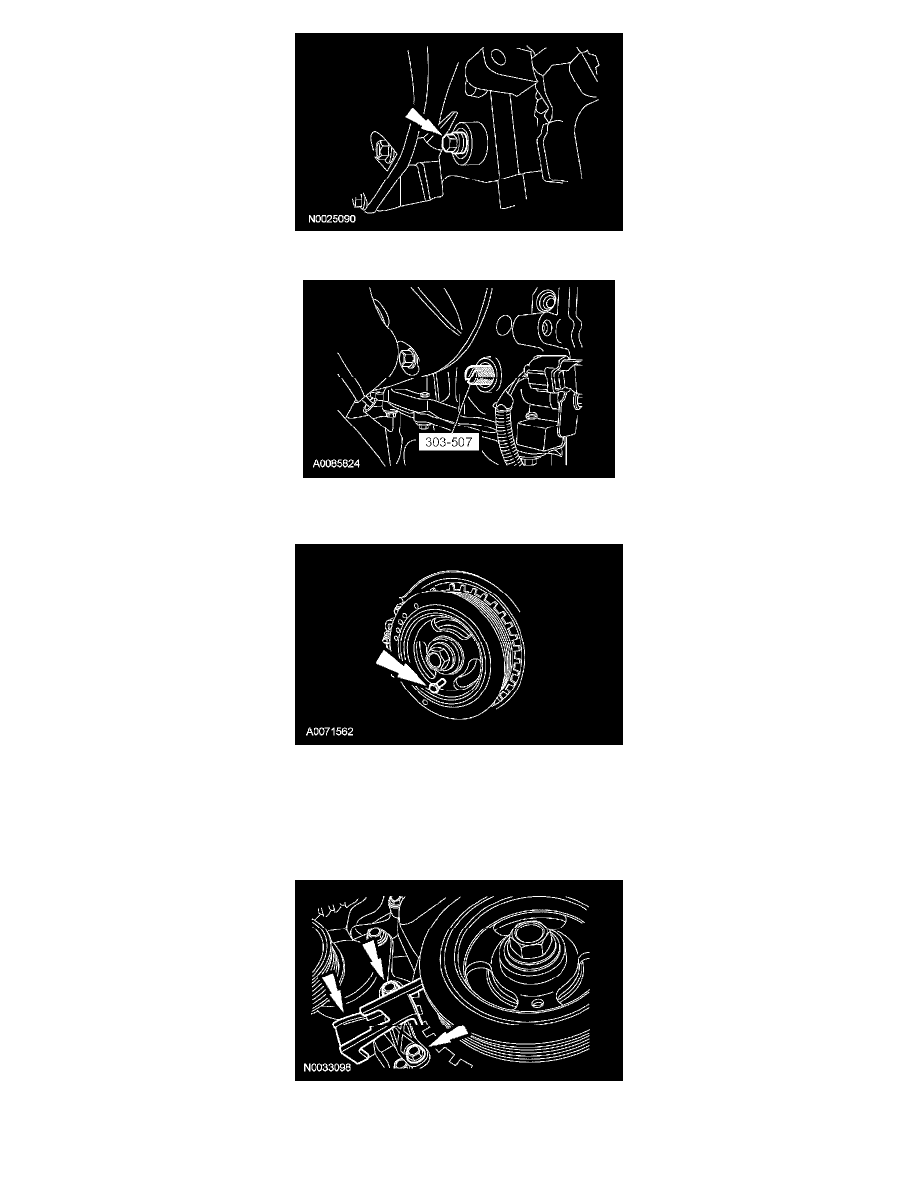

5. Remove the engine front plug.
6. Turn the crankshaft pulley bolt to position the No. 1 cylinder at top dead center and install the special tool.
7. Remove the CKP sensor retaining bolts and the sensor.
8. CAUTION: Only hand-tighten the bolt or damage to the front cover can occur.
Install a 6 mm x 18 mm standard bolt.
Installation
1. Install the CKP sensor, but do not tighten the bolts at this time.
2. NOTE: The crankshaft position (CKP) sensor alignment tool is supplied with the new sensor and is not available separately.
Adjust the CKP sensor alignment jig and tighten the 2 CKP sensor bolts to 7 Nm (62 lb-in).
