Focus ZTS L4-2.0L DOHC VIN 3 (2001)
Backing Plate: Service and Repair
Backing Plate
Removal
1. Remove the brake shoes.
2. Remove the wheel cylinder.

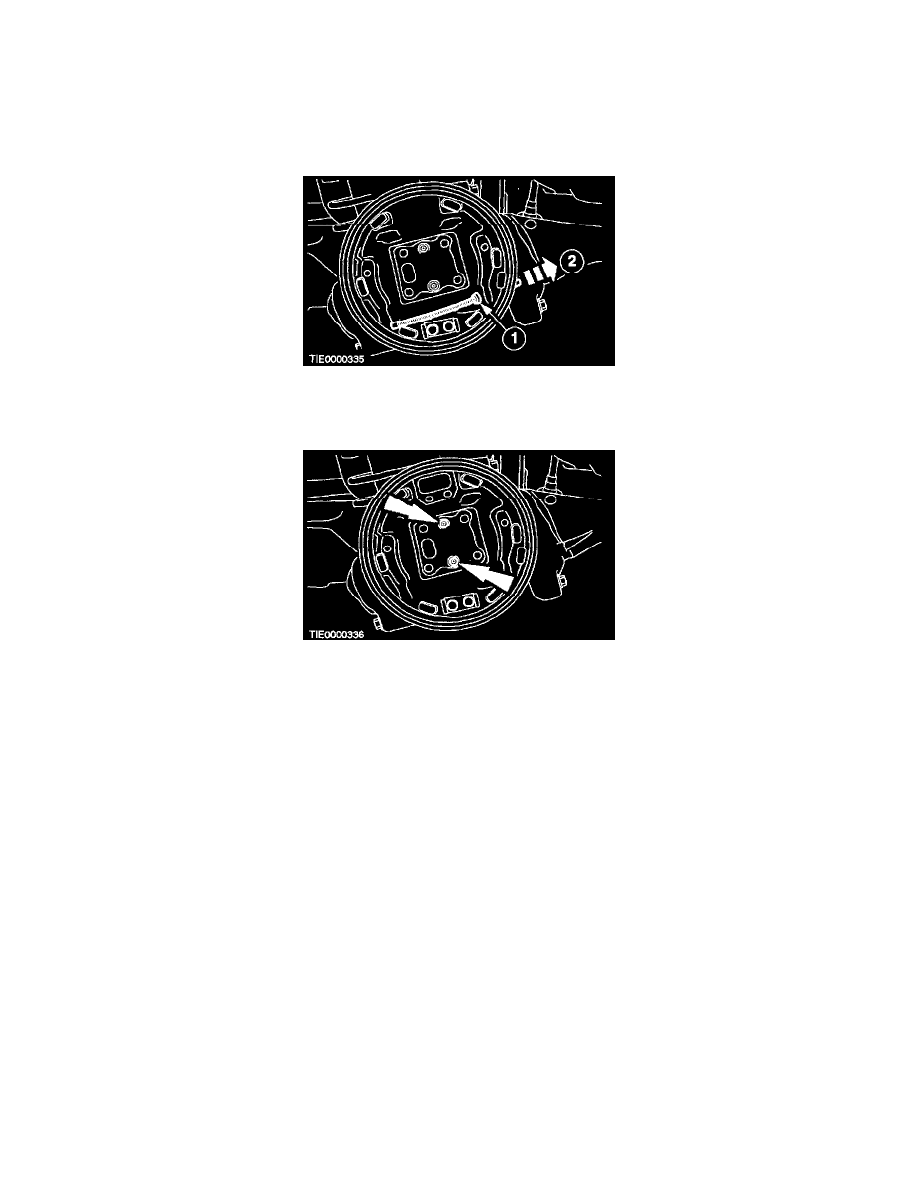

3. Detach the parking brake cable from the backing plate.
1
Depress the retaining clip.
2
Detach the cable.
4. Remove the backing plate rivets.
Installation
1. To install, reverse the removal procedure.
