Focus ZTS L4-2.0L DOHC VIN 3 (2001)

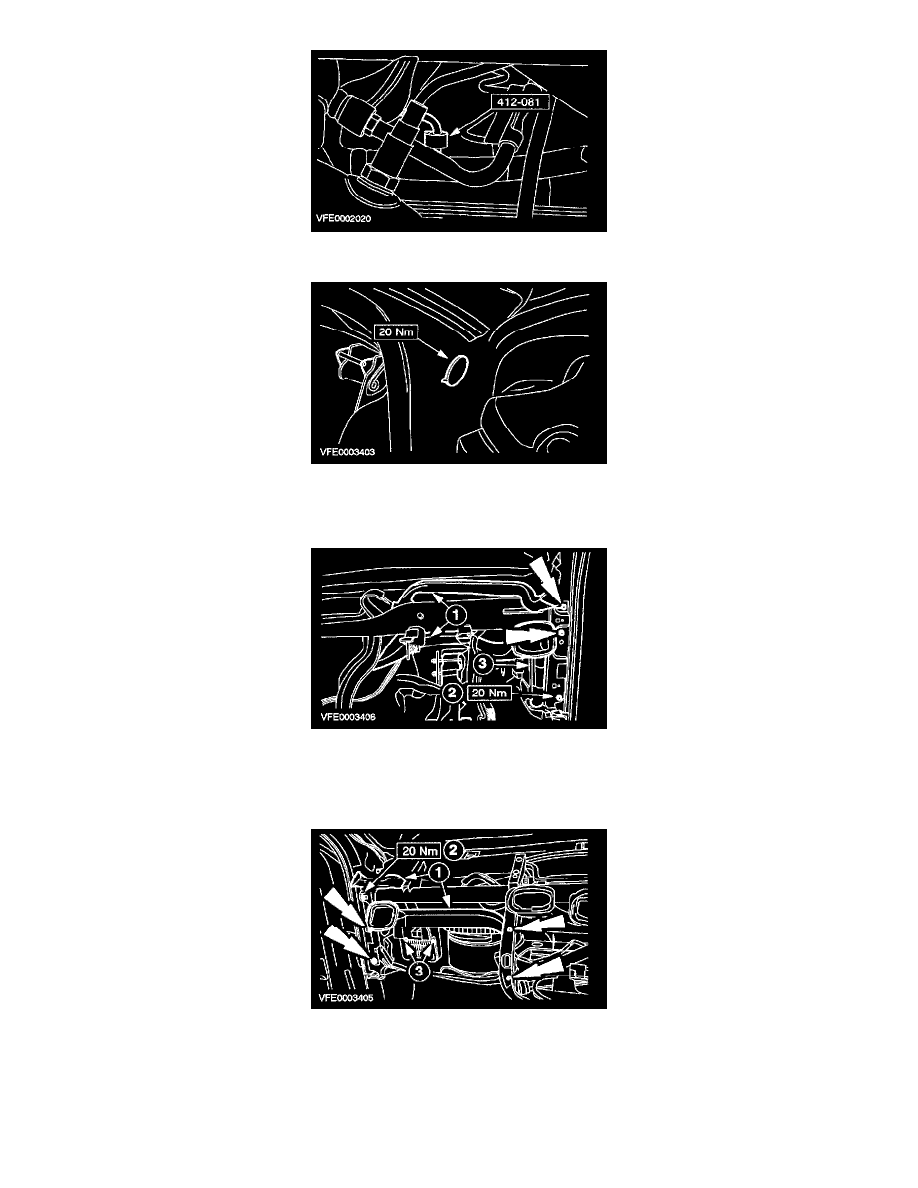

5. Disconnect the refrigerant lines from the evaporator using special tool 412-081 (pressure pipe shown from below).
6. Remove the cross vehicle beam.
-
Remove the cap.
-
Remove the bolt behind the cap.
7. Remove the cross vehicle beam (continued).
1. Unclip and remove the ventilation hoses.
2. Remove the screws.
3. Detach the wiring harnesses from the cross vehicle beam (one shown).
8. Remove the cross vehicle beam (continued).
1. Unclip and remove the ventilation hoses.
2. Remove the screws.
3. Detach the central junction box from the cross vehicle beam.
-
Unclip the wiring harnesses.
