Focus ZTS L4-2.0L DOHC VIN 3 (2001)

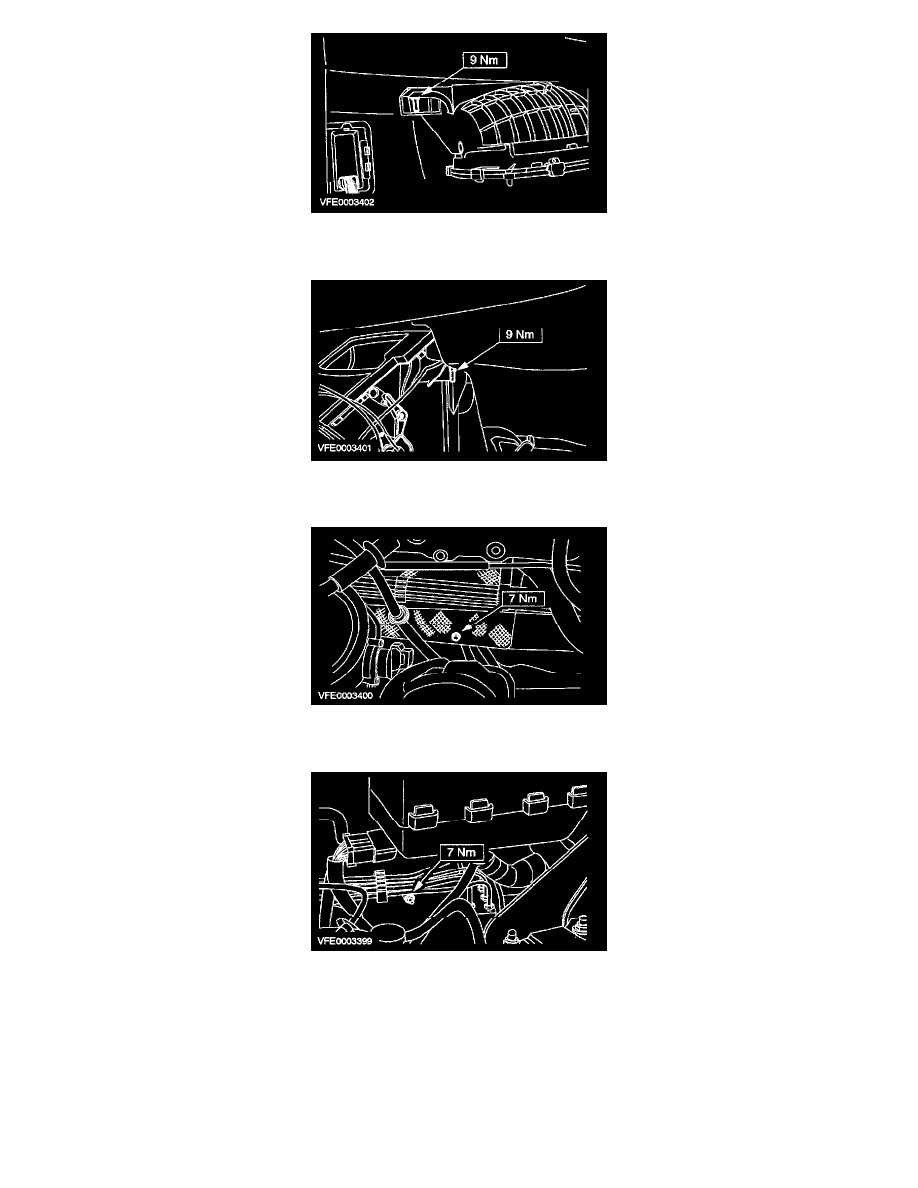

12. Remove the heater housing.
-
Remove the nut.
13. Remove the heater housing (continued).
-
Remove the nut.
14. Remove the heater housing (continued).
-
Remove the nut in the engine compartment.
15. Remove the heater housing (continued).
-
Remove the nut in the engine compartment.
INSTALLATION
1. Refit the components in reverse order.
2. Fit the instrument panel.
3. Refill the cooling system with coolant.
4. Check the operation of the heating and air conditioning system (where fitted).
