Fusion FWD L4-2.3L VIN Z (2007)

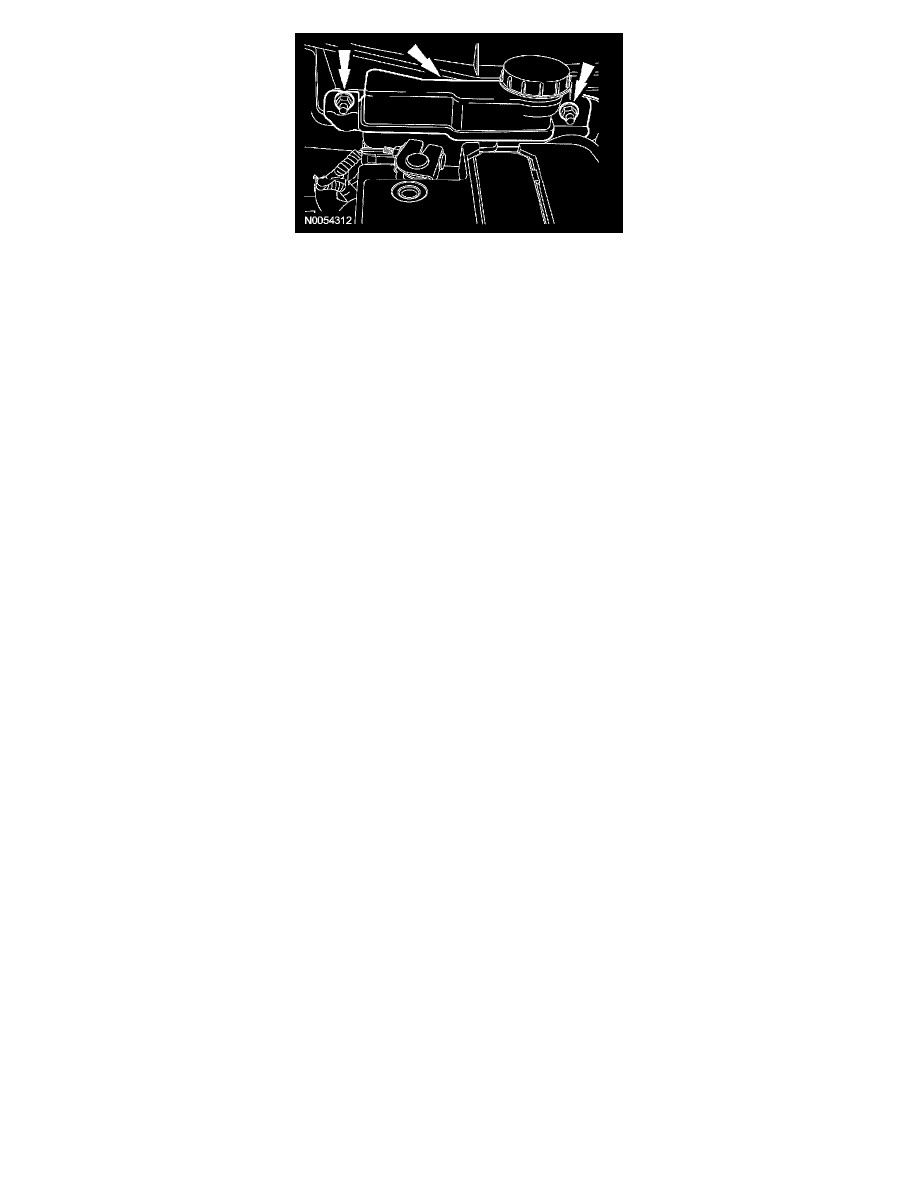

8. Remove the 2 brake fluid reservoir nuts and position the reservoir aside.
Lower cowl panel grille
9. Remove the wiper mounting arm and wiper pivot shaft assembly.
1
Disconnect the electrical connector.
2
Remove the 2 bolts.
-
To install, tighten to 5 Nm (44 lb-in).
10. Remove the 3 bolts and the lower cowl panel center brace.
11. Remove the 10 lower cowl panel grille bolts.
12. Remove the lower cowl panel grille.
13. To install, reverse the removal procedure.
-
Adjust the pivot arms.
