Fusion FWD L4-2.3L VIN Z (2007)

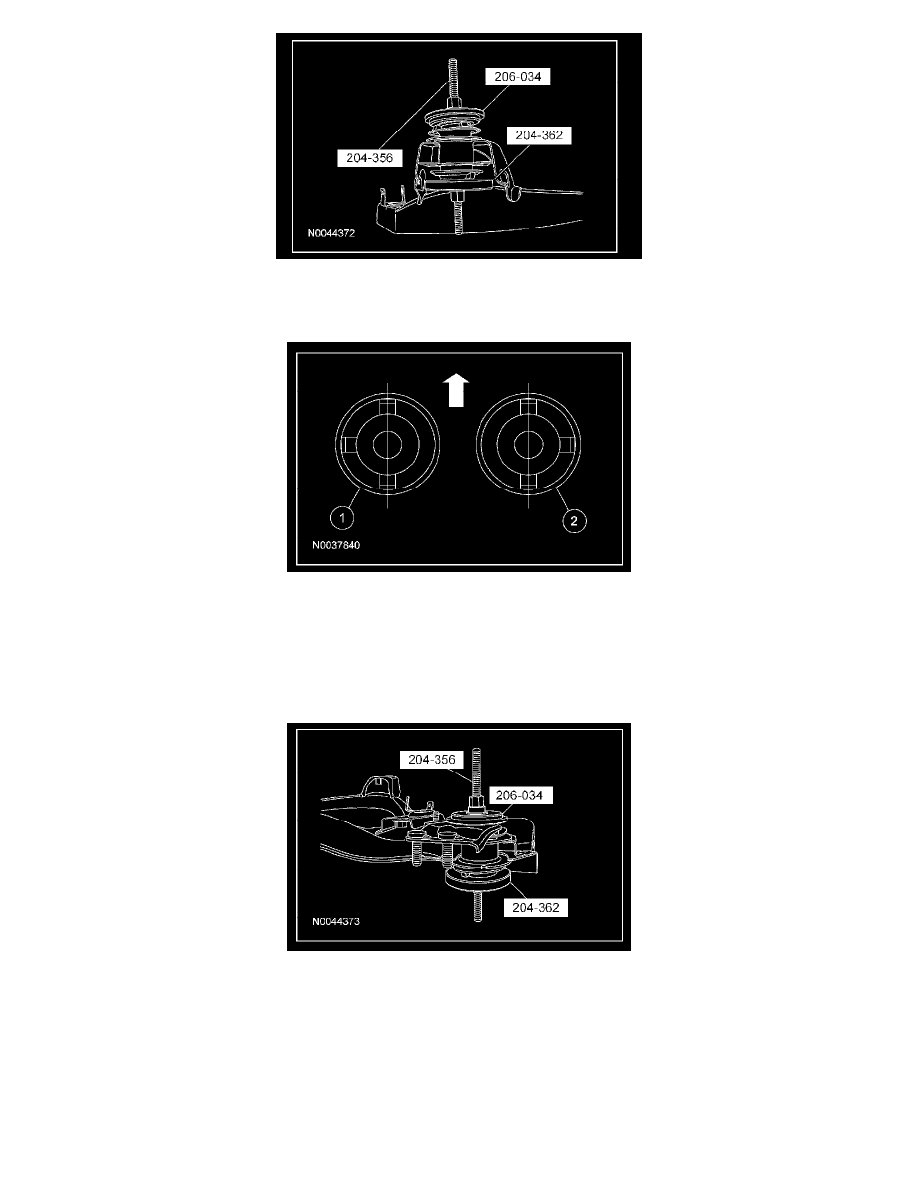

2. Align the front subframe bushings to the front subframe.
1
Align the left upper and left lower subframe bushings.
2
Align the right upper and right lower subframe bushings.
3. Press the new front bushings into the front subframe.
Rear bushings
4. NOTE: The bushings must be installed with the correct orientation or increased noise and vibration may result.
Assemble the special tools to the front subframe with the new rear bushings. The upper and lower bushings are installed at the same time.
5. Align the rear bushings to the front subframe.
1
Align the upper rear bushings to the mark on the subframe.
2
Align the left rear lower bushing.
3
Align the right rear lower bushing.
