Fusion FWD L4-2.3L VIN Z (2007)
Grille: Service and Repair

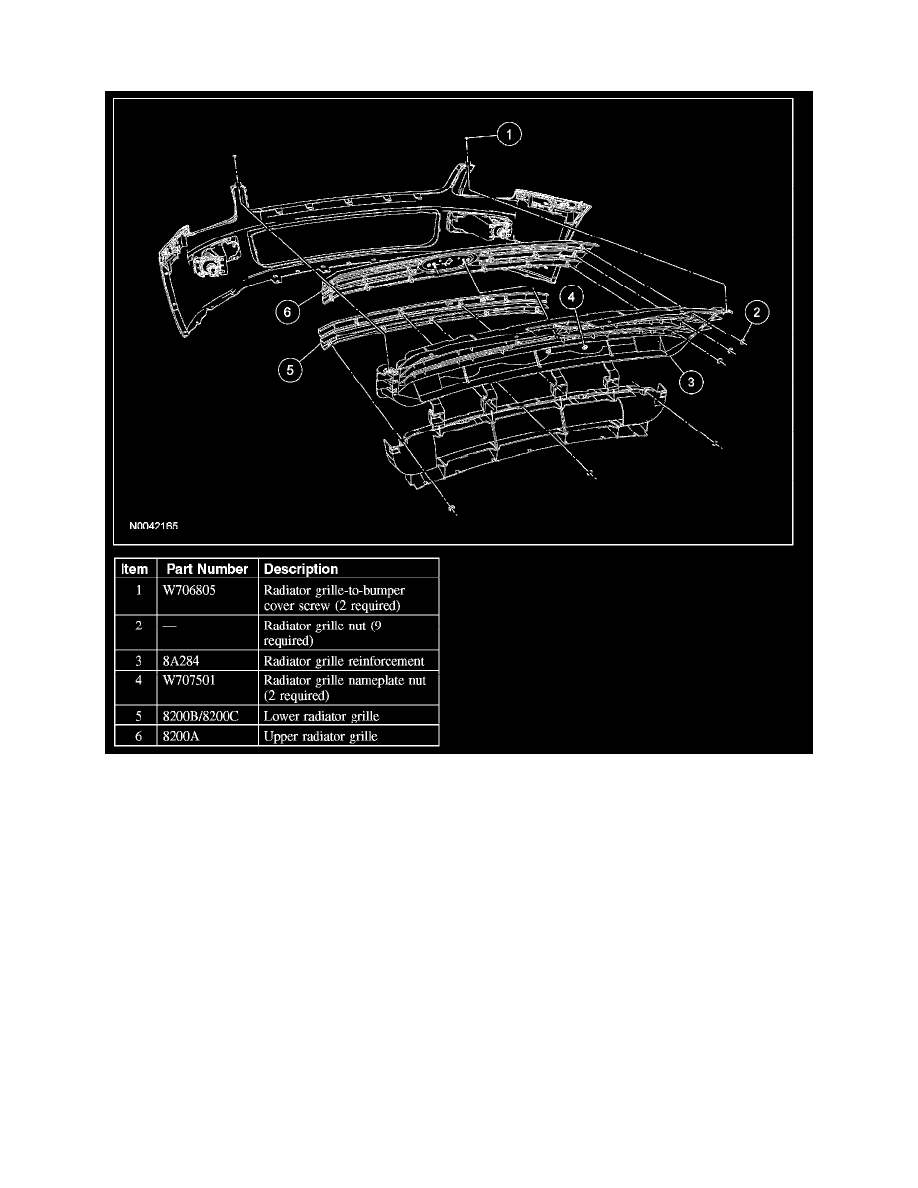

RADIATOR GRILLE
1. Remove the front bumper cover.
2. Remove the screws from the radiator grille-to-bumper cover.
3. Disengage the radiator grille from the clips on the bumper cover.
4. Remove the radiator grille.
5. To install, reverse the removal procedure.
