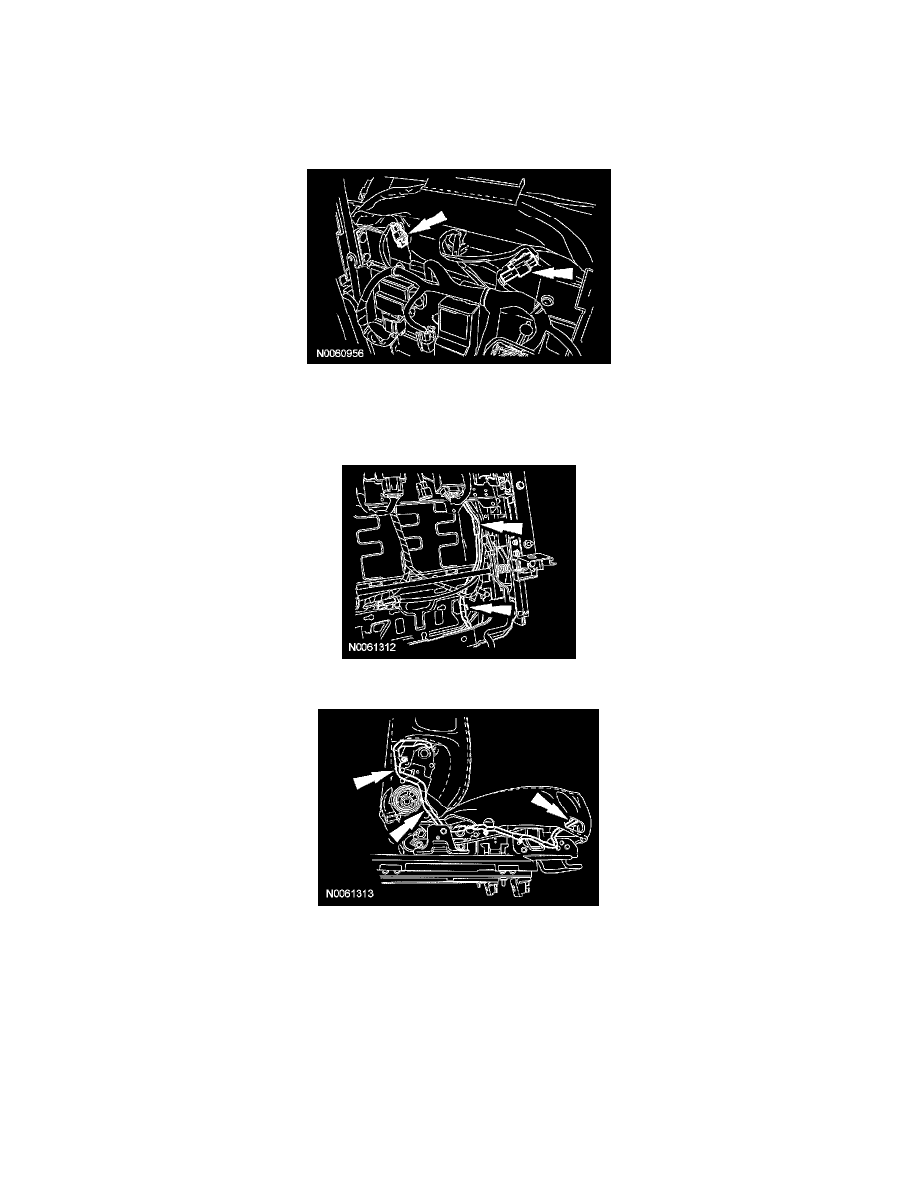

13. Separate the cable at the LH recliner.
1
Separate the cable from the LH recliner.
2
Squeeze the cable housing tabs together and separate from the LH recliner.
Seats with heat or side air bags
14. Release the first cushion trim cover J-clip from the rear of the cushion frame.
15. Disconnect and detach the electrical connectors.
-
If equipped, slide and disengage the side air bag module electrical connector locking clip, release the tab and disconnect the side air bag
module electrical connector. Detach any pin-type retainers.
-
If equipped, disconnect the heated seat electrical connector and detach any pin-type retainers.
16. Detach and route out the side air bag wire harness.
17. Route out the side air bag wire harness from the seat track and cushion.
All seats
18. Remove the 4 recliner-to-cushion frame bolts and remove the backrest assembly.
-
To install, tighten to 55 Nm (41 lb-ft).
19. To install, reverse the removal procedure.
20. Install the front seat and repower the SRS. Do not prove out the SRS at this time.
21. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
