Fusion FWD L4-2.3L VIN Z (2007)

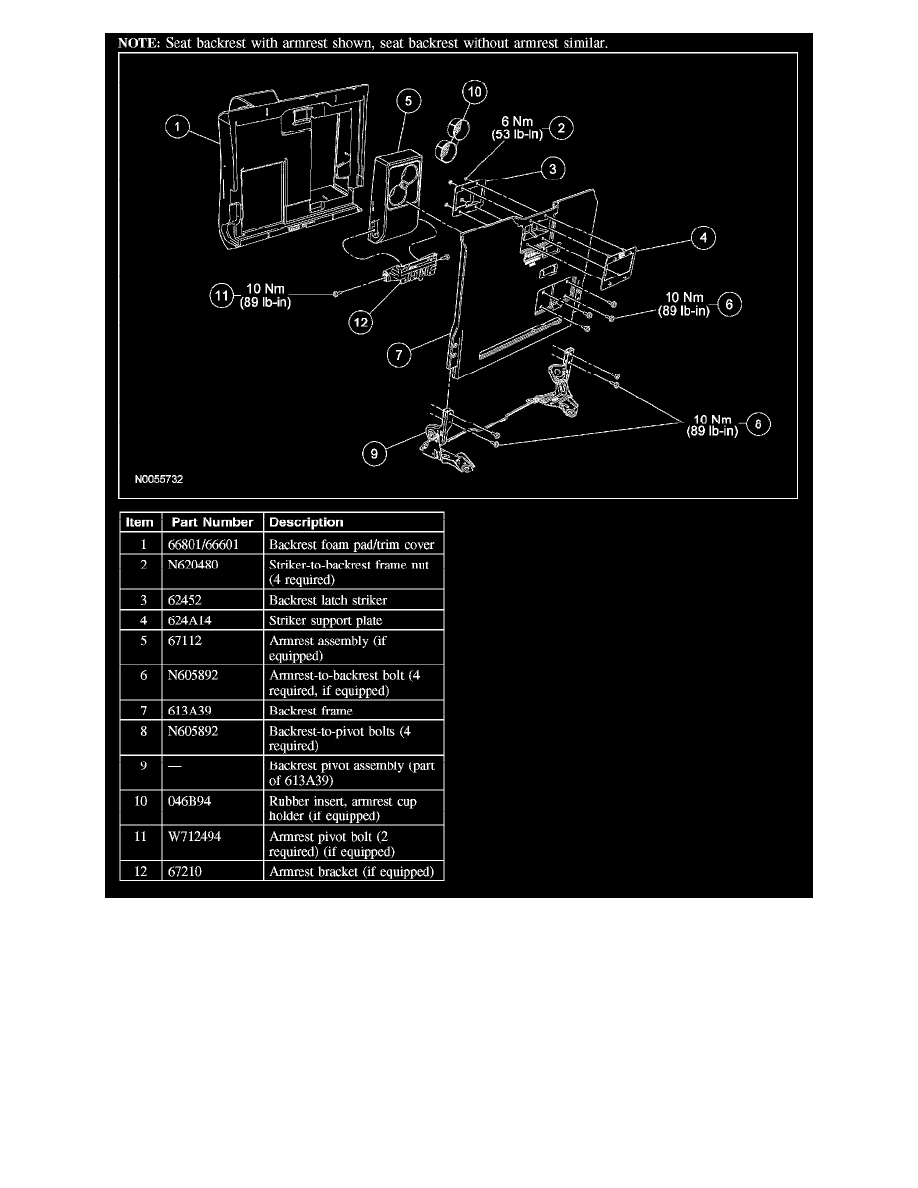

Disassembly and Assembly
All seats
1. Remove the rear seat cushion.
2. Remove the 60 percent rear seat backrest.
3. Release the trim cover lower J-strip.
Seats equipped with armrest
4. Invert the trim cover enough to gain access to the armrest-to-backrest bolts.
5. Remove the 4 armrest-to-backrest bolts and support plate.
-
For installation, adjust the armrest horizontally as needed for good fit.
-
To install, tighten to 10 Nm (89 lb-in).
