Fusion FWD L4-2.3L VIN Z (2007)
Passenger Seat Cushion (Part 2)

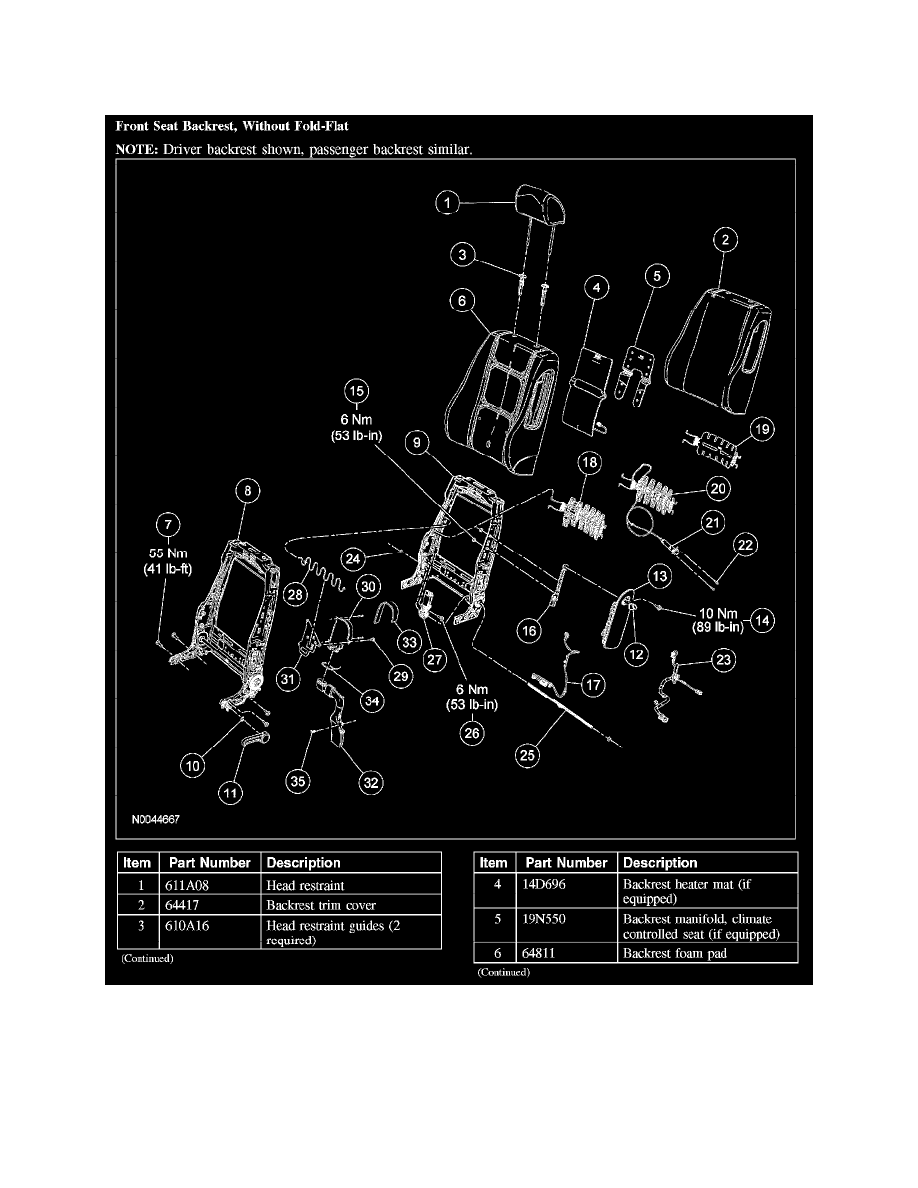

Exploded View
Special Tool(s)
Special Tool(s)
Removal
WARNING:
-
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module.
This will reduce the risk of injuring the event of an accidental deployment.
-
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
-
If a seat equipped with a SRS component is being serviced, the SRS must be depowered.
-
The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal
operation and does not indicates SRS fault.
-
When installing a new dual climate control seat module (DCSM), it is necessary to carry out programmable module installation (PMI).
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
1. Before removing the DCSM, carry out the appropriate steps in the programmable module installation (PMI) procedure.
2. Remove the front seat and depower the supplemental restraint system (SRS).
3. Remove the DCSM from the cushion electrical bracket.
-
Release the locking wedges and disconnect the 3 DCSM electrical connectors.
