Fusion FWD L4-2.3L VIN Z (2007)

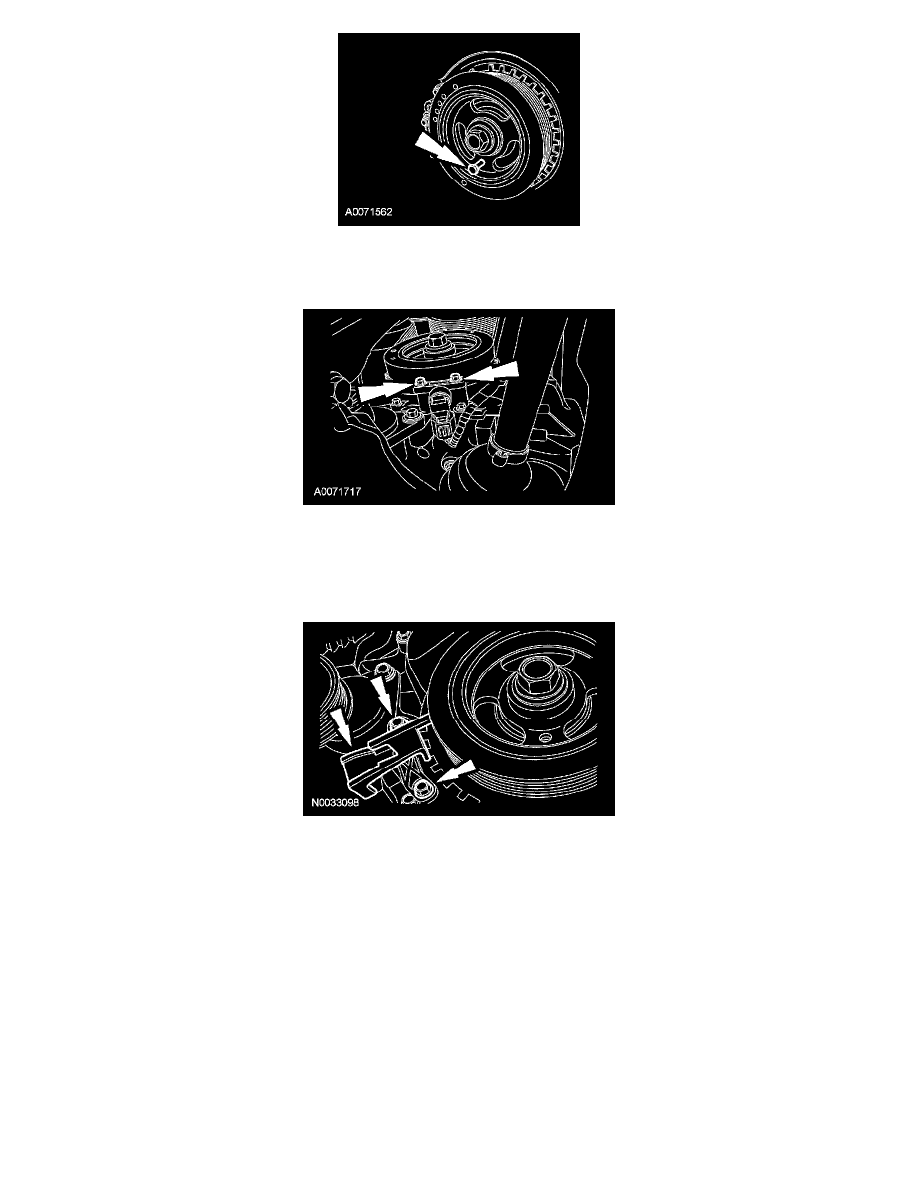

1. CAUTION: Only hand-tighten the bolt or damage to the front cover can occur.
Install a 6 mm (0.23 in) x 18 mm (0.7 in) standard bolt in the crankshaft pulley.
2. NOTE: Whenever the crankshaft position (CKP) sensor is removed, a new one must be installed using the alignment tool supplied with the new
part.
Install the CKP sensor and the 2 bolts.
-
Do not tighten the bolts at this time.
3. NOTE: The CKP sensor alignment tool is supplied with the new sensor and is not available separately.
Adjust the CKP sensor with the alignment tool.
-
Tighten the 2 CKP bolts to 7 Nm (62 lb-in).
4. Connect the CKP sensor electrical connector.
5. Remove the 6 mm (0.23 in) bolt from the crankshaft pulley.
6. Install the cylinder block plug.
-
Tighten to 20 Nm (15 lb-ft).
