Fusion FWD L4-2.3L VIN Z (2007)
Installation

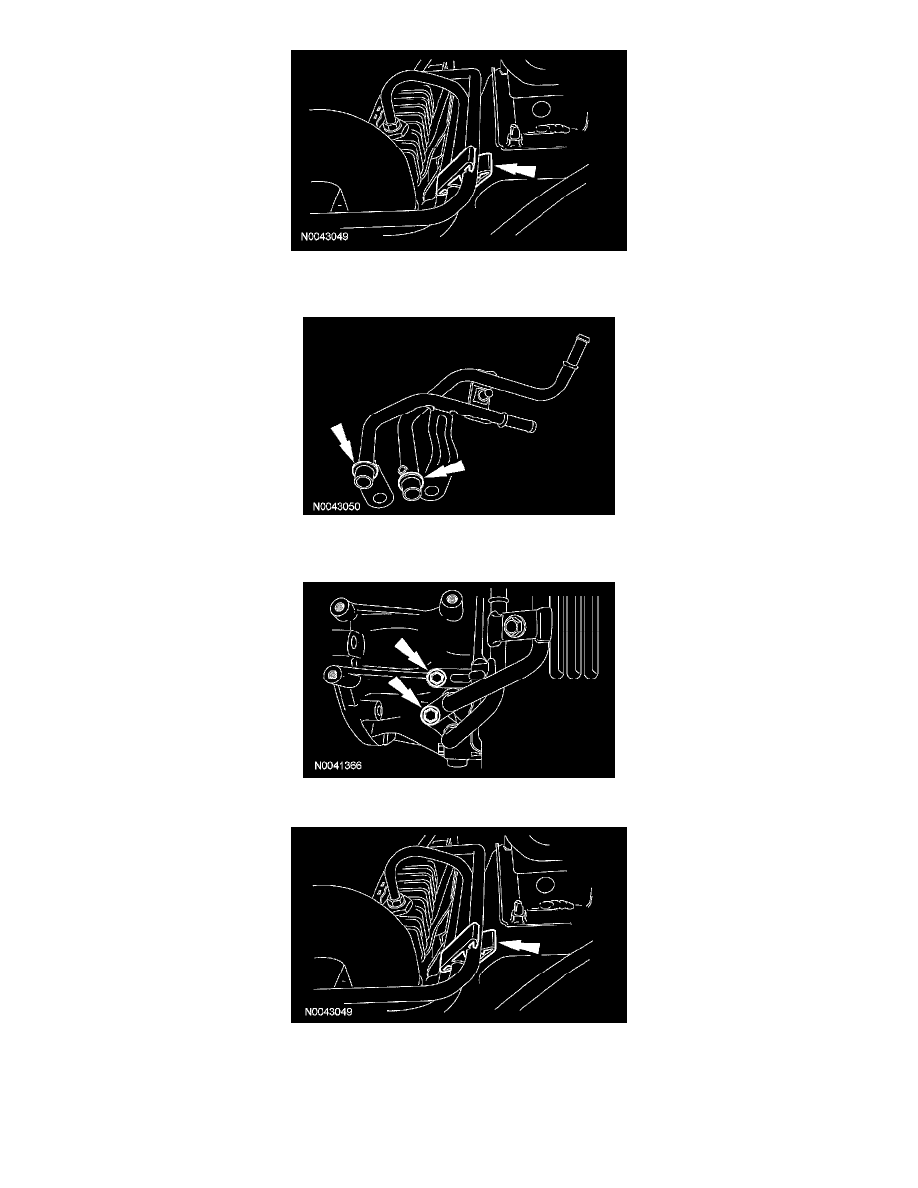

1. Install new O-rings on the transmission fluid cooler tubes.
2. Install the transmission fluid cooler tubes.
-
Tighten to 10 Nm (89 inch lbs.).
3. Position the transmission fluid cooler tubes in place and install the retainer.
4. Install the transmission fluid cooler tubes in the retainers.
