Fusion FWD L4-2.3L VIN Z (2007)

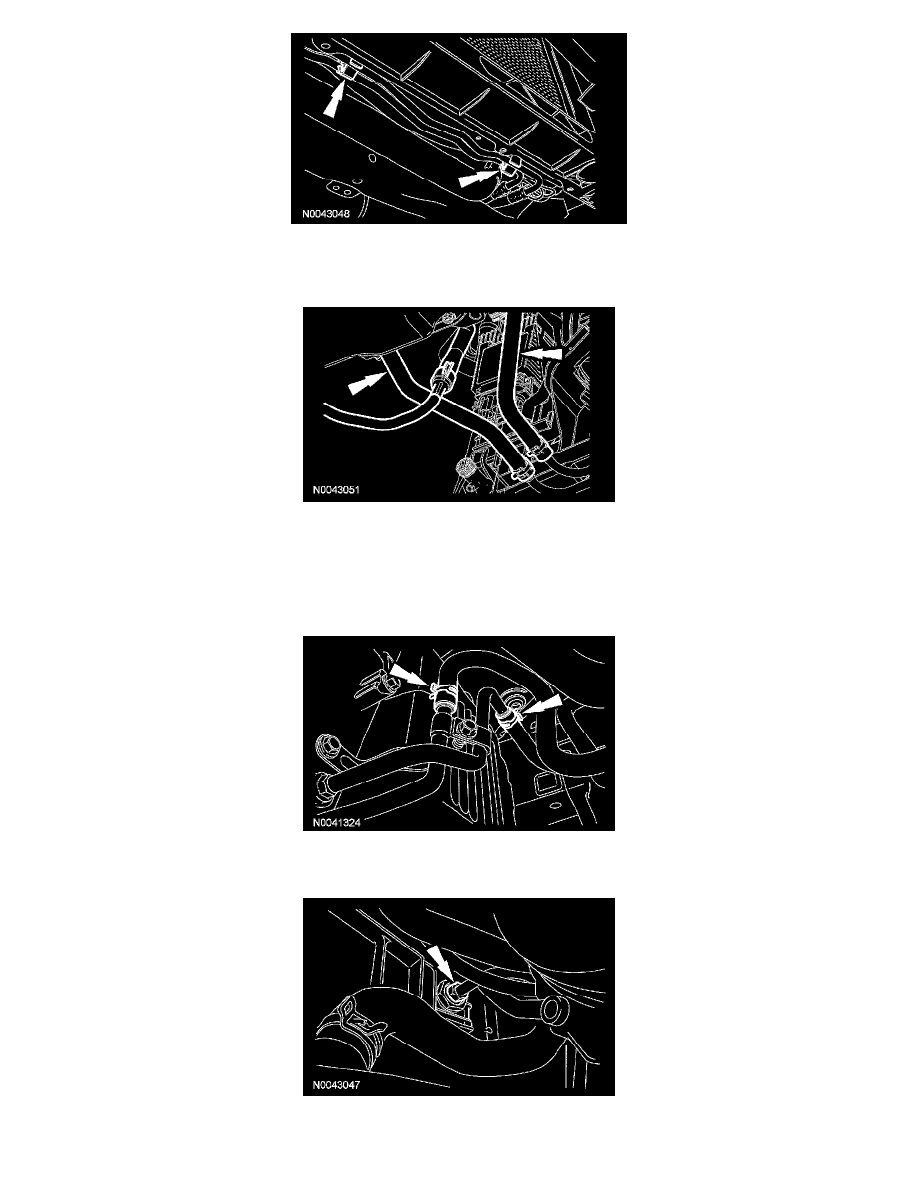

5. NOTE: The power steering hose is routed between the 2 transmission fluid cooler hoses.
Position the transmission fluid cooler hoses in place.
6. CAUTION: Use care not to over stretch or extend the hose clamps.
CAUTION: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the
hose. If the clamp or hose is damaged, install a new fluid cooler tube.
Connect the transmission fluid cooler hoses to the transmission fluid cooler tubes.
7. Install the lower transmission fluid cooler tube in the radiator.
-
Tighten to 30 Nm (22 ft. lbs.).
8. Install the front splash shield.
1. Position the splash shield in place and install the 2 screws.
