Fusion FWD L4-2.3L VIN Z (2007)
Differential Seals - RH
Differential Seals - RH, Front Wheel Drive (FWD)

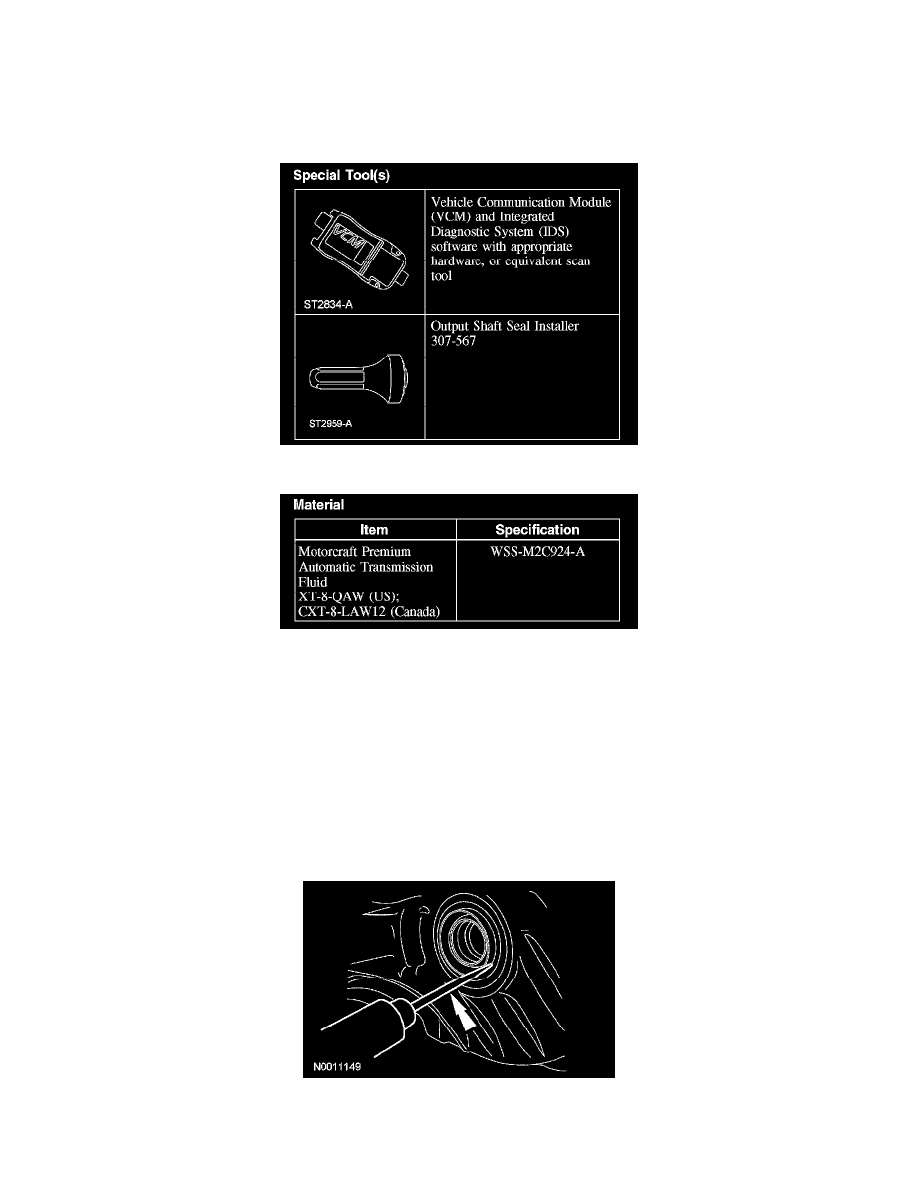

Special Tools
Material
Removal
CAUTION: MERCON "(R)" , MERCON "(R)" V, MERCON "(R)" SP, Motorcraft Premium Automatic Transmission Fluid and
Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other
than what is recommended for this transmission will cause transmission damage.
1. Remove the RH halfshaft.
2. CAUTION: Be careful not to damage the case while removing the seal.
Using a suitable dent puller, remove the differential fluid seal.
