Fusion FWD L4-2.3L VIN Z (2007)

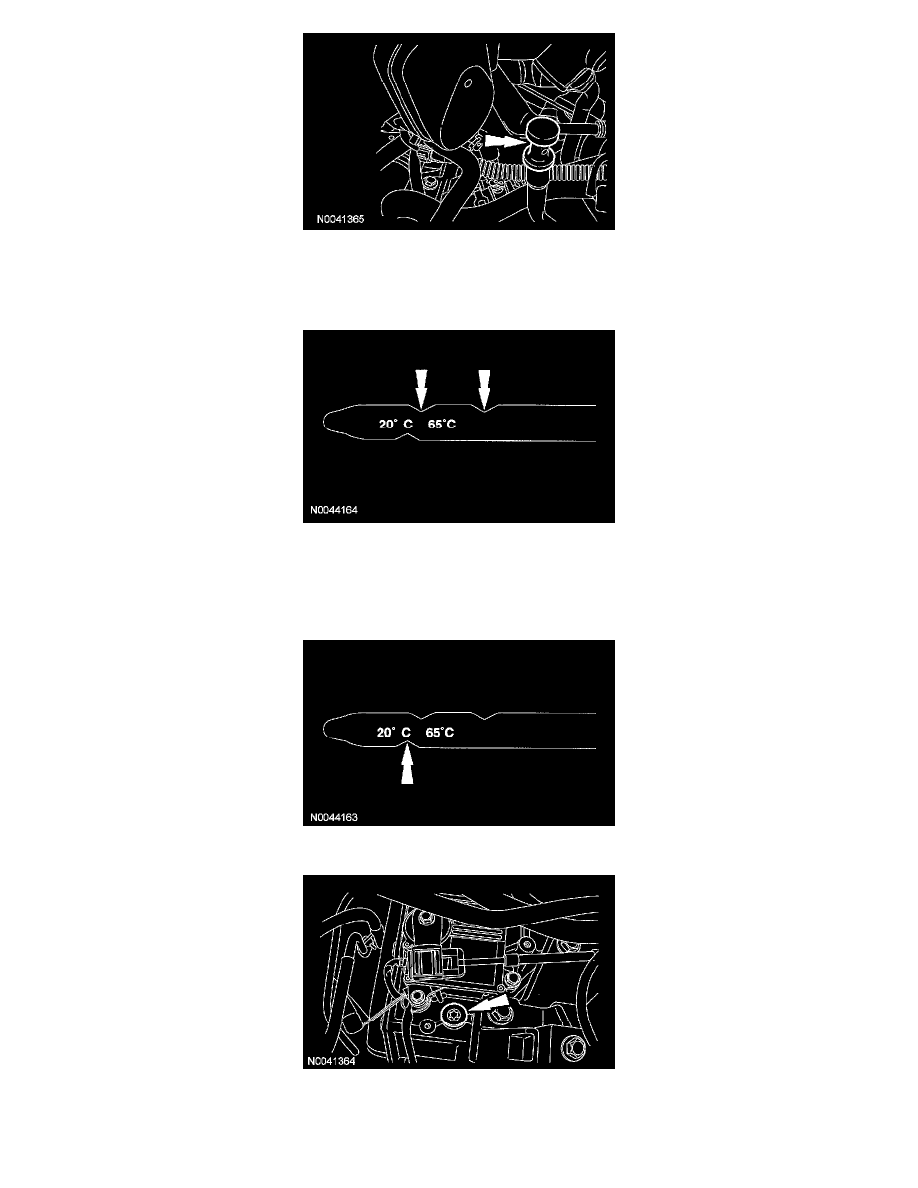

8. NOTE: The correct transmission fluid level at normal operating temperature of 60°C-70°C (140°F-158°F) is between the top 2 marks on the fluid
level indicator.
Fill the transaxle to the correct fluid level.
9. NOTE: The correct transmission fluid level at cold operating temperature of 15°C-25°C (59°F-77°F) is at the bottom mark on the fluid level
indicator.
If the transmission fluid temperature is low, fill the fluid to the cold range on the fluid level indicator. Recheck the fluid level when the transaxle
has reached the normal operating temperature.
10. Remove the transmissions fluid fill plug.
11. Fill the transaxle with clean automatic transmission fluid.
12. Install the fluid fill plug.
-
Tighten to 39 Nm (29 ft. lbs.).
