Fusion FWD L4-2.3L VIN Z (2007)
Control Module: Removal and Replacement
6 Speed - Automatic Transaxle/Transmission
Transmission Control Module (TCM)
Removal

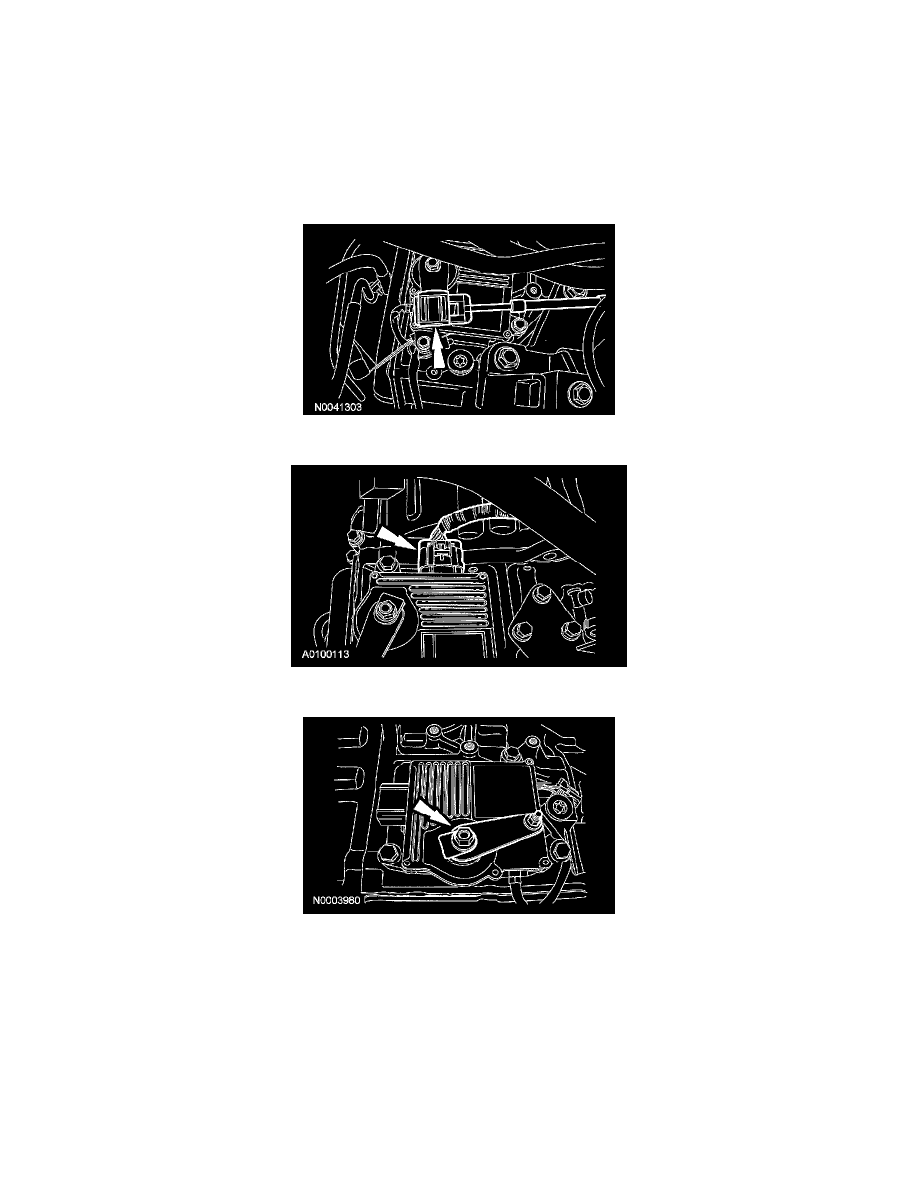

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the air cleaner assembly.
4. Disconnect the shift cable end.
5. Disconnect the transmission control module (TCM) electrical connector.
6. Remove the manual control lever nut.
7. Remove the manual control lever.
