Fusion FWD L4-2.3L VIN Z (2007)
Wiper Arm: Service and Repair

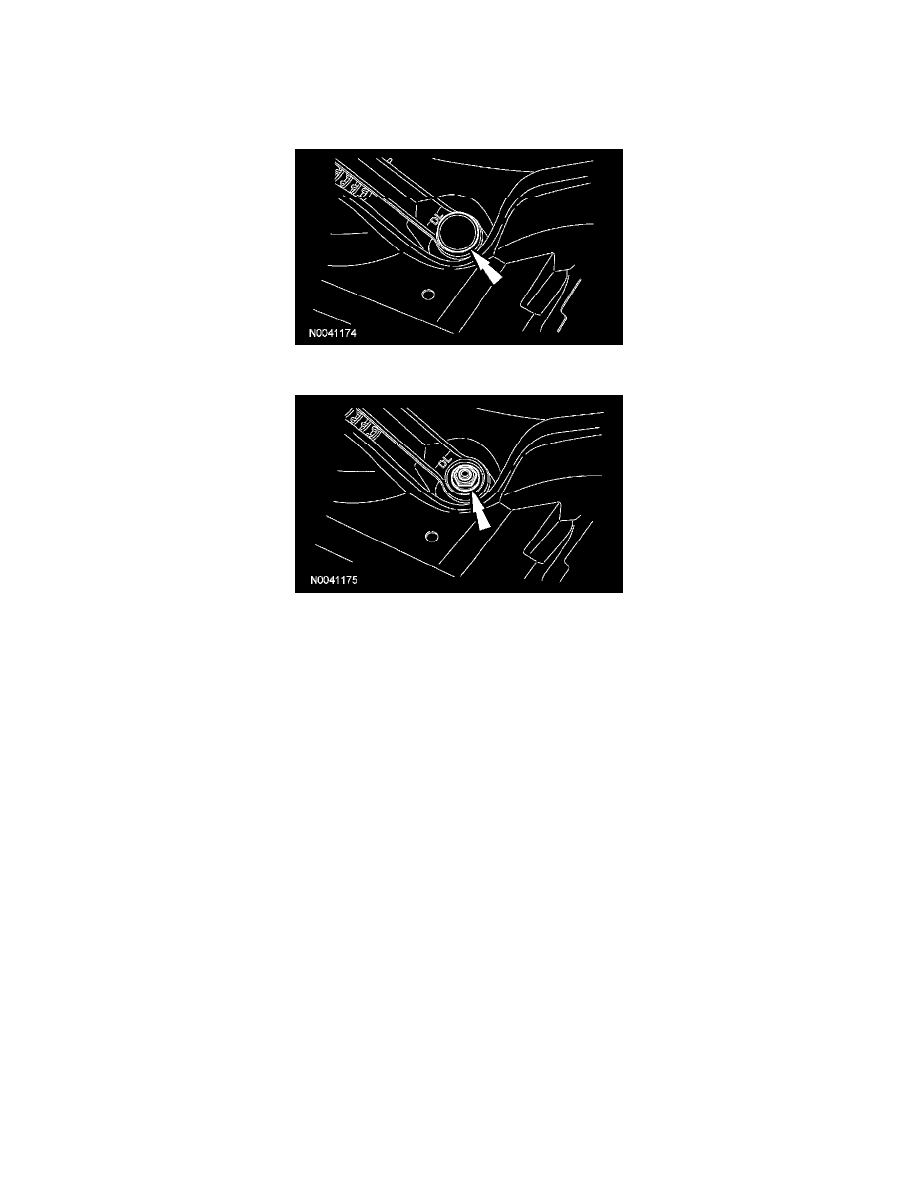

Wiper Mounting Arm and Pivot Shaft
WIPER MOUNTING ARM AND PIVOT SHAFT
Removal and Installation
1. Remove the upper cowl panel grille.
2. Disconnect the windshield wiper motor electrical connector.
3. Remove the 2 windshield wiper mounting arm and pivot shaft assembly bolts and the windshield wiper mounting arm and pivot shaft assembly.
-
To install, tighten to 5 Nm (44 lb-in).
4. To install, reverse the removal procedure.
