Mustang V8-302 5.0L CFI HO (1985)
6.

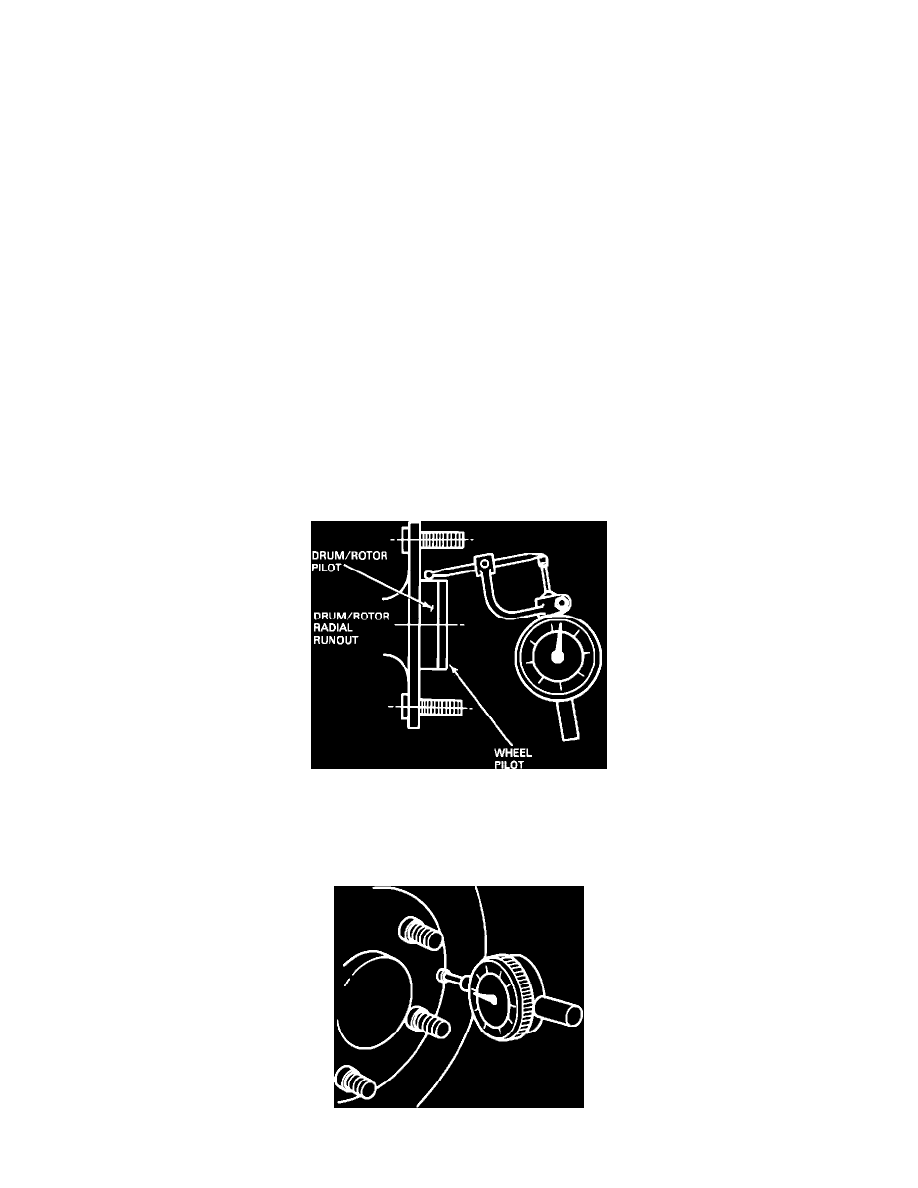

Reposition dial indicator as shown in Figure 6.
7.
Check axle shaft flange face lateral runout. If runout exceeds .010 inch, replace axle shaft.
NOTE:
Refer to the axle shaft application chart below for correct service part application.
Vehicle
Build Date
Service Part
LTD/Marquis
All
D9BZ-4234-C
Mustang/Capri
All
D9BZ-4234-C
Thunderbird/Cougar
Before
E3SZ-4234-A
02/01/85
Thunderbird/Cougar
After
E5SZ-4234-A
02/01/85
Continental/Mark VII
All
E5LY-4234-A
(with Anti-lock System)
Continental/Mark VII
All
E25Y-4234-A
(without Anti-lock System)
PART NUMBER
PART NAME
CLASS
D9BZ-4234-C
Axle Shaft
A
E3SZ-4234-A
Axle Shaft
A
E5SZ-4234-A
Axle Shaft
A
E5LY-4234-A
Axle Shaft
B
E25Y-4234-A
Axle Shaft
B
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual
OPERATION: SP870509A - Check runout on both axles
TIME:
0.6 Hr.
OPERATION: SP870509B - Check runout and replace one axle shaft
TIME:
0.8 Hr.
OPERATION: SP870509C - Check runout and replace both axle shafts
TIME:
1.1 Hrs.
OPERATION: SP870509S1 - Extra time to back-off and readjust brakes
TIME:
0.1 Hr.
OPERATION: SP870509S2 - Extra time if equipped with locking lug nuts
TIME:
0.1 Hr.
OPERATION: SP870509S3 - Extra time if equipped with locking wheel covers
TIME:
0.1 Hr. DLR. CODING: Basic Part No. 4234 - Code: 67
