Mustang V8-302 5.0L CFI HO (1985)

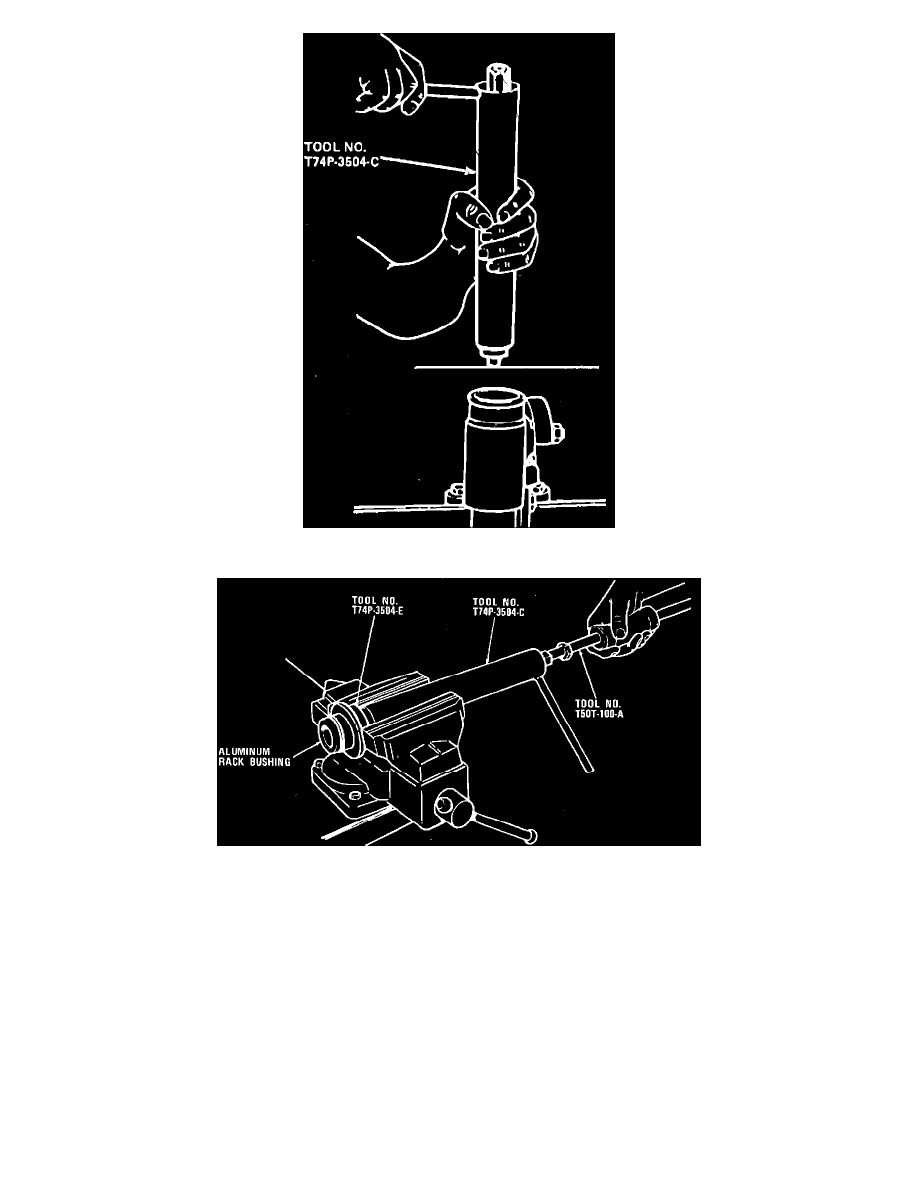

Fig. 14 Positioning inner rack oil seal remover. Capri, Mustang
Fig. 15 Removing oil seal from rack bushing. Capri, Mustang
3.
Working from right side of gear, push rack until it bottoms.
4.
On all models except 1982 Mustang, Capri and 1984---86 Mustang SVO, install rack bushing locknut tool T74P-3504-B, or equivalent, over
exposed end of rack and into housing bore. Position tool so that two tabs engage in slots on rack bushing lock nut, then remove locknut, Fig. 12.
5.
On 1982 Mustang, Capri and 1984---86 Mustang SVO, install rack bushing locknut tool T77P-3504-A, or equivalent, so the drive tabs engage the
slots of lock ring, Fig. 13. Rotate tool counter clockwise to drive the lock wire out of slot of housing and remove lock ring.
6.
Slowly pull rack out of housing until rack piston contacts rack bushing. Pull on rack until bushing is removed from housing, then remove rack.
7.
Insert rack seal remover tool T74P-3504-C, or equivalent, into housing until it bottoms in housing, Fig. 14. Using a wrench, tighten tool until it is
fully expanded. Attach a suitable slide hammer to tool and remove oil seal from housing.
8.
Remove O-rings from rack piston.
9.
Place rack bushing in holding tool T74P-3504-E, or equivalent, then position tool and bushing in a vise. Remove oil seal from bushing using tool
No. T74P-3504-C, or equivalent, and a suitable slide hammer. Remove O-ring from bushing, Fig. 15.
