Mustang V8-4.6L SC VIN Y (2004)
Clutch Cable: Service and Repair
Release Cable - Clutch
Removal
CAUTION: Whenever the clutch release lever cable is disconnected for any reason, such as transmission removal, clutch pedal components or clutch
release lever cable replacement, it is imperative the correct method for installing the clutch release lever cable be followed. Incorrect installation may
damage components or cause system failure.

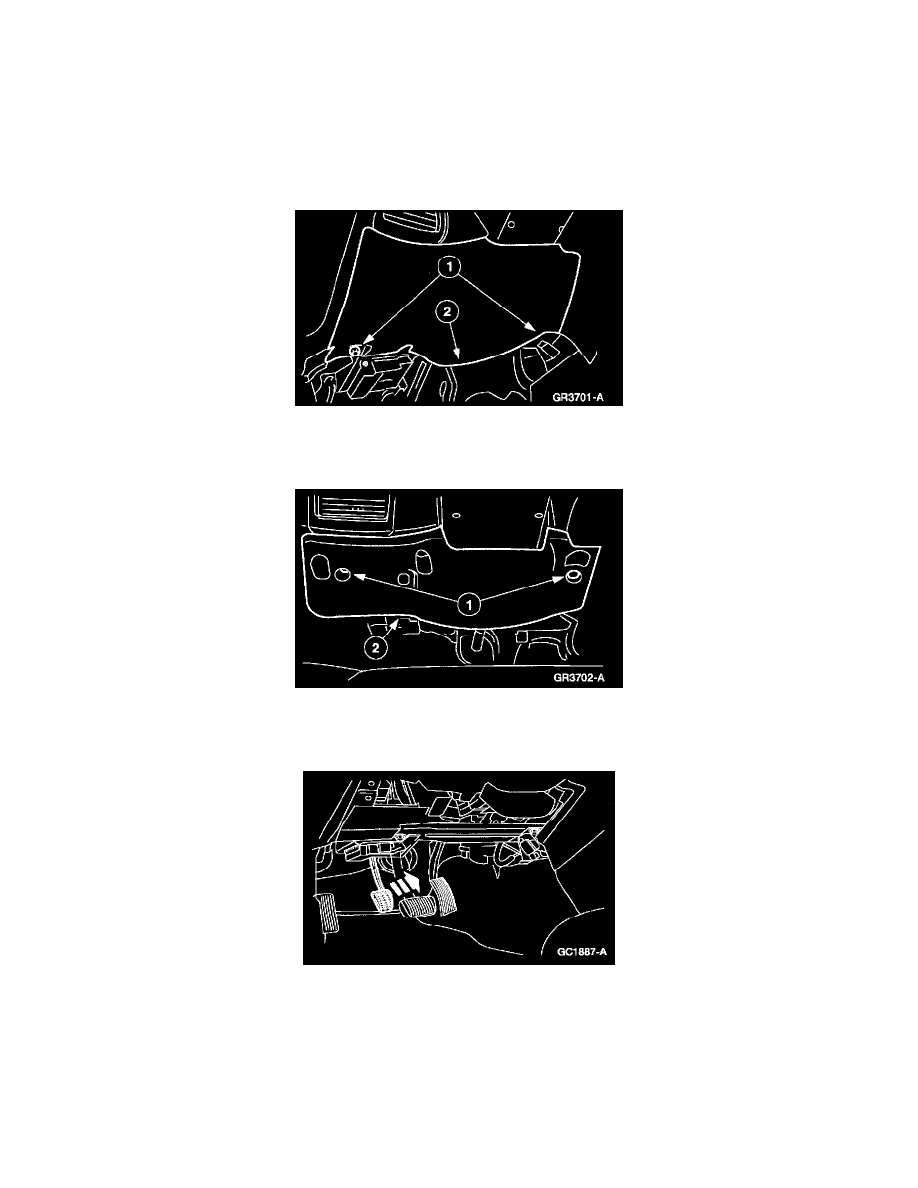

1. Remove the instrument panel steering column cover.
1
Remove the screws.
2
Remove the instrument panel steering column cover.
2. Remove the instrument panel reinforcement.
1
Remove the screws.
2
Remove the instrument panel reinforcement.
3. Lift the clutch pedal to its most upward position.
4. Remove the front seat.
