Ranger 2WD V6-177 2.9L (1989)
Brake Pad: Service and Repair
Installation

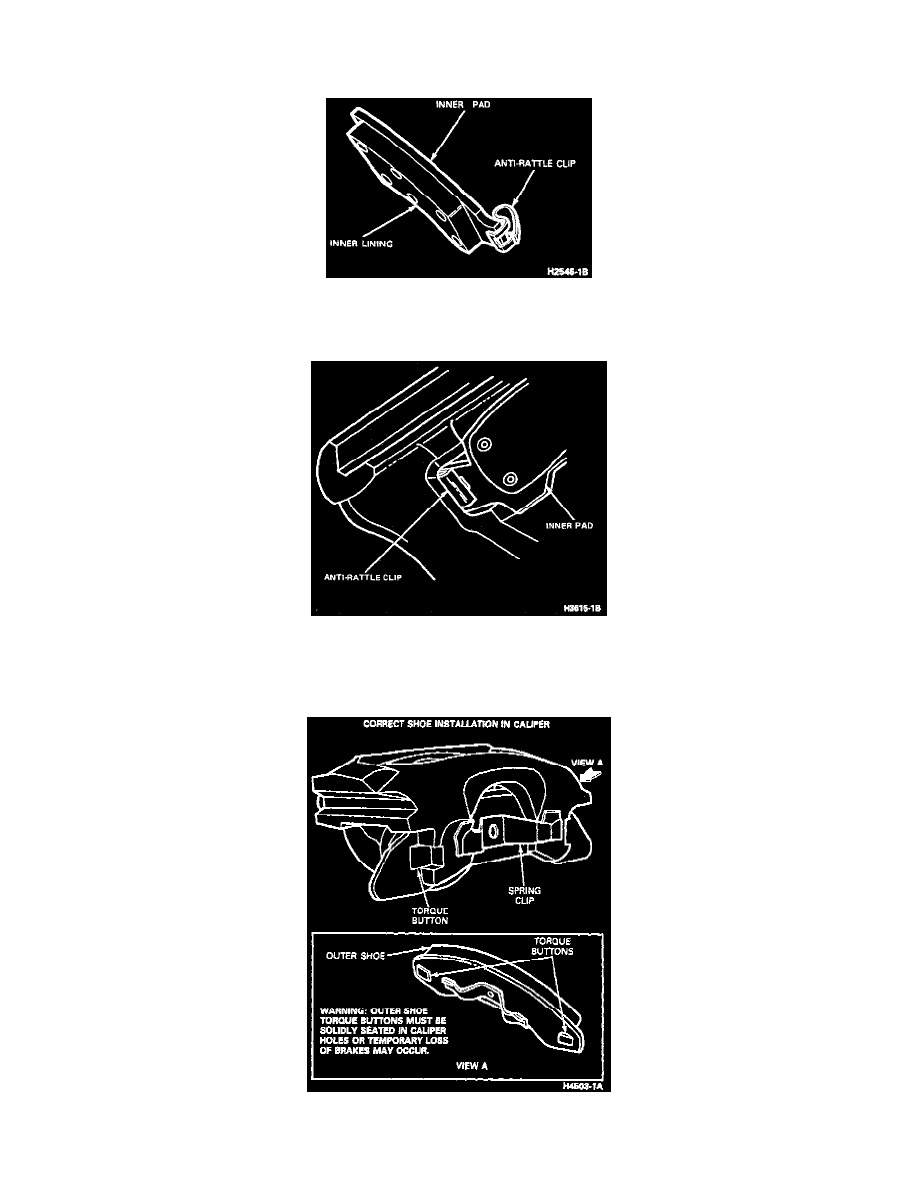

Installing Anti-Rattle Clip
1. Place a new anti-rattle clip on the lower end of the inner pad. Be sure the tabs on the clip are positioned properly and the clip is fully seated.
Installing Inner Shoe And Anti-Rattle Clip
2. Position the inner pad and anti-rattle clip in the pad abutment with the anti-rattle clip tab against the pad abutment and the loop-type spring away
from the rotor. Compress the anti-rattle clip and slide the upper end of the pad in position.
Outer Pad Installation
