Ranger 2WD V6-177 2.9L (1989)

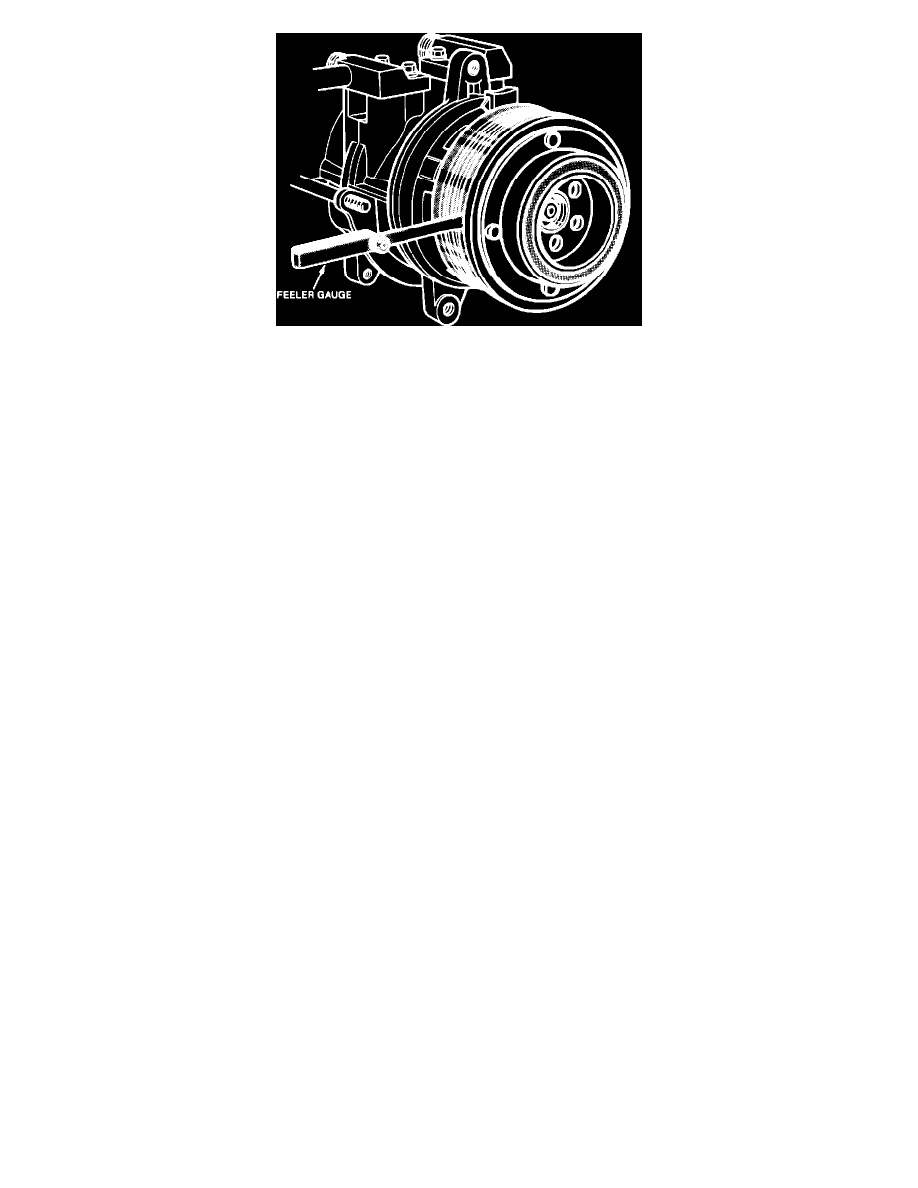

Fig. 7 Checking clutch air gap
6.
Check clutch air gap between hub and pulley mating surface in three locations equally spaced, Fig. 7. Then rotate pulley one-half turn and check
air gap again. The smallest air gap must be within specification. Add or remove shims until desired limit is attained.
