Ranger 2WD V6-177 2.9L (1989)
Powertrain Management
Fuel Delivery and Air Induction
Relays and Modules - Fuel Delivery and Air Induction
Fuel Pump Relay
Component Information
Locations
Page 1

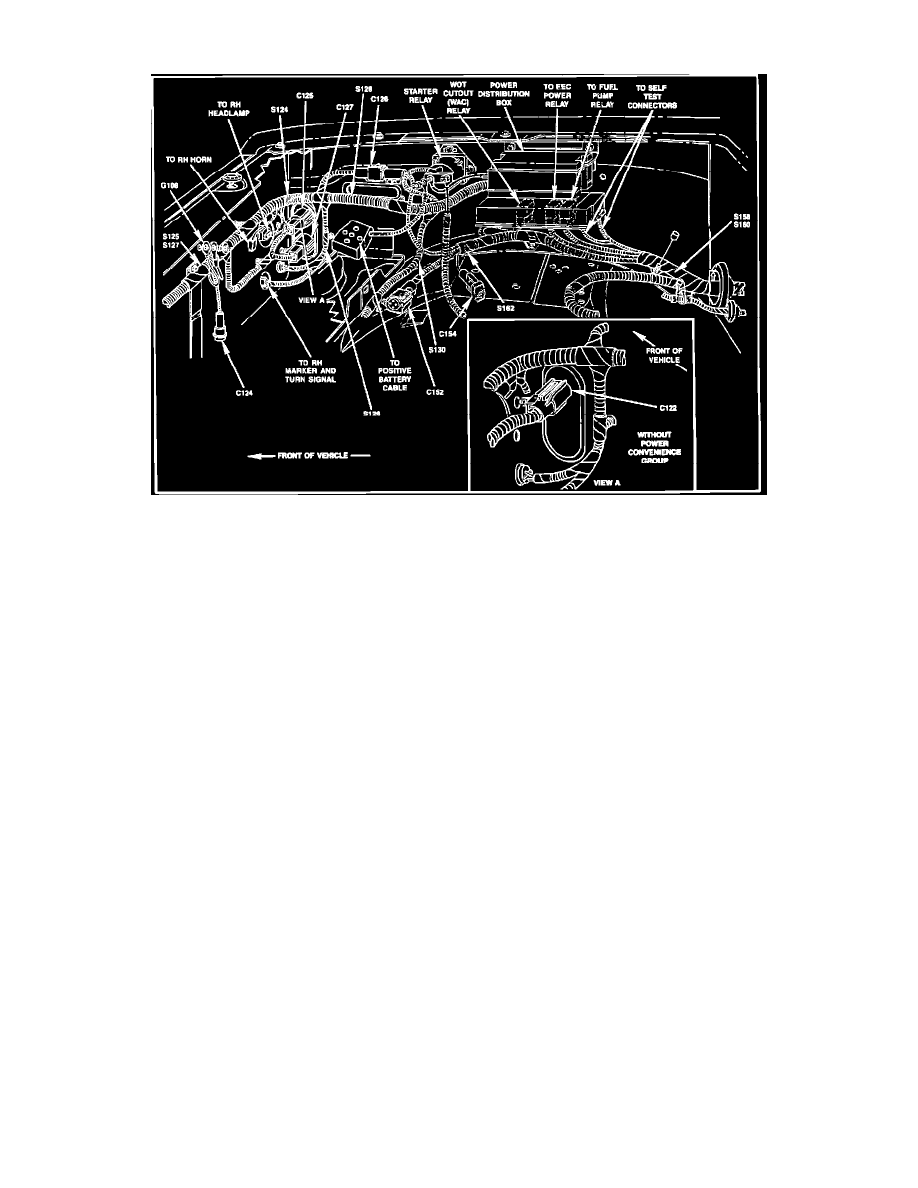

Fuel Pump Relay: Locations
RH Side Of Engine Compartment.
RH Fender Apron
Applicable to: V6-179/2.9L
