Taurus V6-232 3.8L (1989)
Differential: Technical Service Bulletins
A/T - AXOD/AXODE End Play Specification
Article No.
92-26A-8
12/16/92
TRANSAXLE - AXOD/AXODE - END PLAY SPECIFICATION CHANGE FOR # 18 THRUST WASHER
FORD:
1986-92 TAURUS
LINCOLN-MERCURY:
1986-92 SABLE
1988-92 CONTINENTAL
ISSUE:
Too much differential end clearance may cause cocking of the rear support bushing, allowing the bushing to spin or turn, blocking off lube to the
differential assembly, resulting in premature wear or damage to the assembly.
ACTION:
Seven new # 18 selective thrust washers have been released to allow for a finer adjustment of the differential end clearance.
NOTE:
PREVIOUSLY ONLY THREE (3) SELECTIVE THRUST WASHERS WHERE AVAILABLE LIMITING THE RANGE OF ADJUSTMENT.
^
OLD END CLEARANCE SPECIFICATION (0.10 - 0.65 mm) (.0040-026")
^
NEW END CLEARANCE SPECIFICATION (0.10 - 0.40 mm) (.004"-.016")

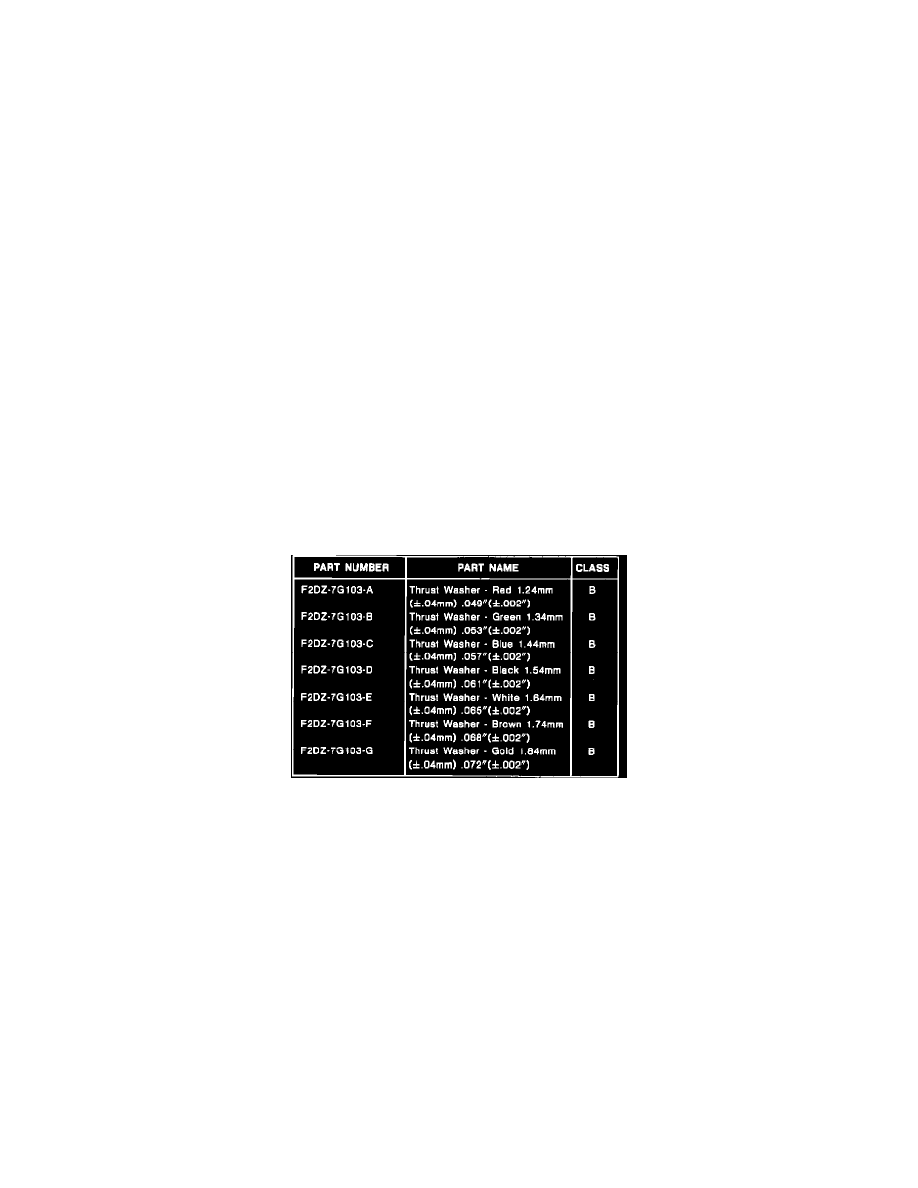

Part name/number chart
NOTE:
THIS REPRINTED TSB ARTICLE INCLUDES A REVISION TO THE OLD END CLEARANCE SPECIFICATION.
OTHER APPLICABLE ARTICLES: NONE
SUPERSEDES: 92-12-12
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES:
504000, 590000
