C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F (2001)
Door Stop: Service and Repair

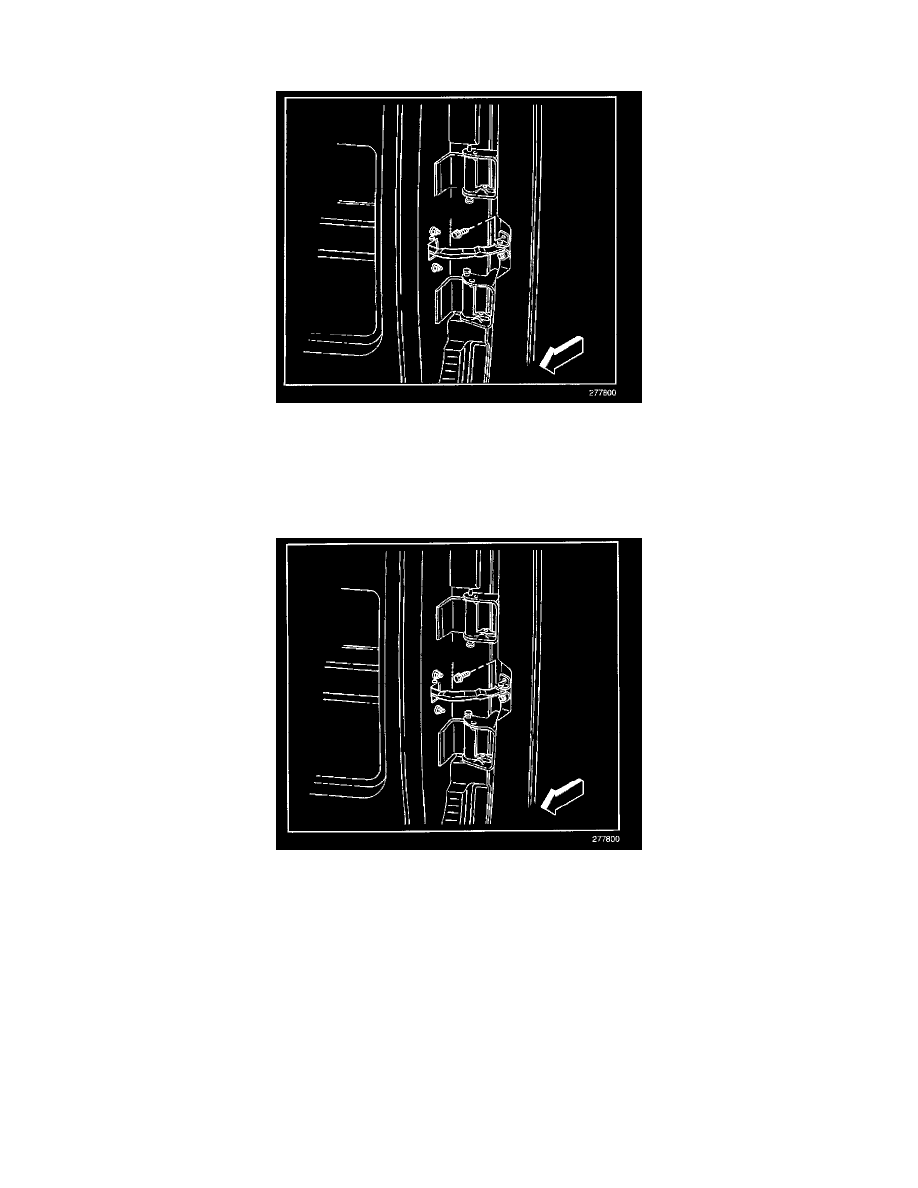

REMOVAL PROCEDURE
1. Fully open the door.
2. Remove the body-side check strap bolts.
3. Remove the door-side check strap bolts.
4. Pull the check strap from the inside of the door.
INSTALLATION PROCEDURE
1. Align the installation tab.
2. Install the check strap in the door.
3. Install the check strap in the body.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the check strap bolts.
Tighten
Tighten the bolts to 10 N.m (89 lb in).
