C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F (2001)
Arm Rest: Procedures

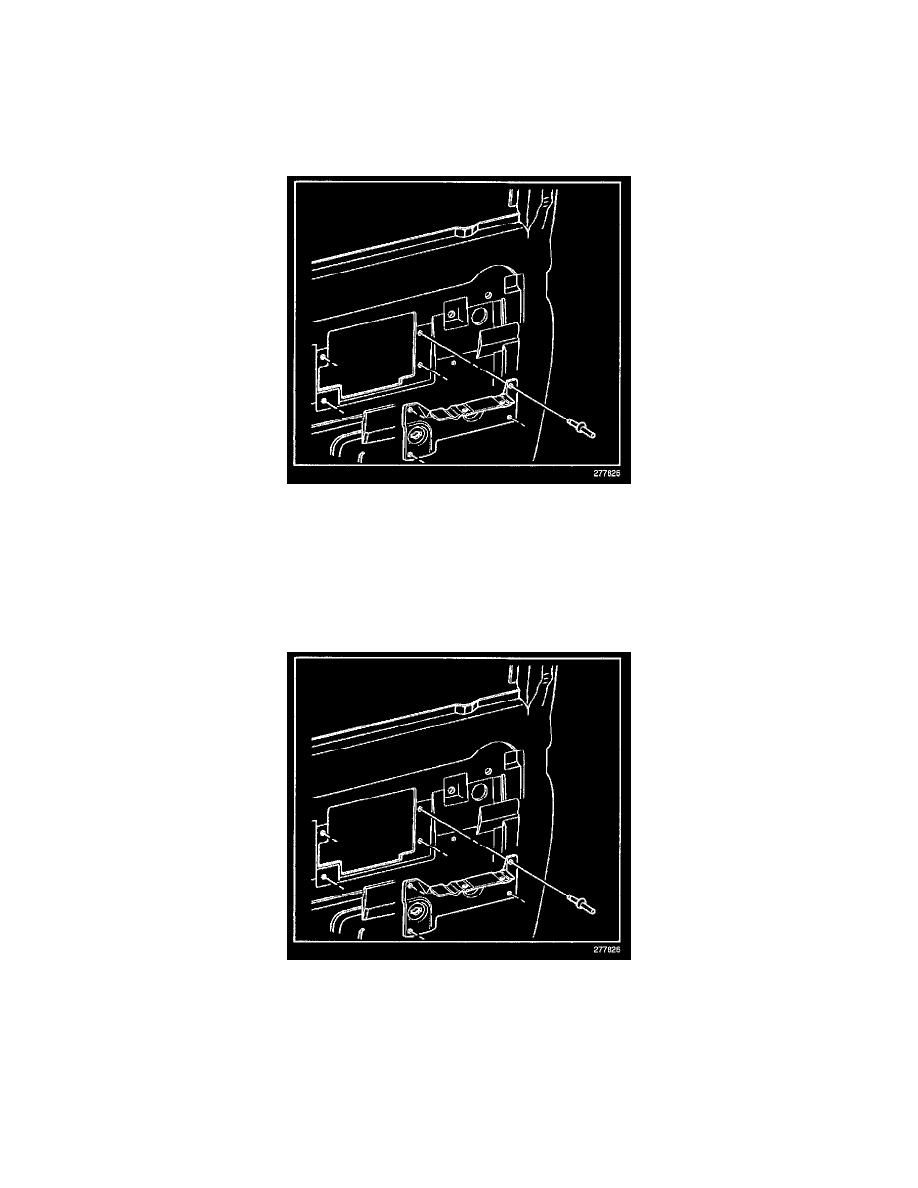

ARMREST BRACKET REPLACEMENT
TOOLS REQUIRED
J 34940 Rivet Gun
REMOVAL PROCEDURE
1. Remove the trim panel.
2. Remove the water deflector.
3. Remove the armrest bracket from the door.
3.1. Drill out the rivets using a 1/4 drill bit.
3.2. Disconnect the control rods from the retainers.
4. Remove the retainers and the U-nuts from the bracket.
INSTALLATION PROCEDURE
1. Install the retainers and the U-nuts to the bracket.
2. Install the armrest bracket to the door.
2.1. Connect the control rods from the retainers.
2.2. Use the J 34940 in order to install the bracket rivets.
3. Install the water deflector.
4. Install the trim panel.
